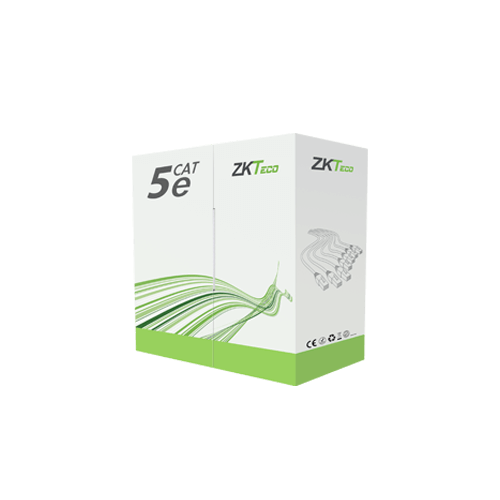

ZKTeco XL500-UL

Name: ZKTeco XL500-UL - NZTeco Limited
SKU: 764

ZKTeco XL500-UL

· Structure: 4 Pairs Twisted
· Conductor: Oxygen-free Copper
· Insulation: HDPE
· Jacket: PVC
· Rated Temperature: 0~70°C
· Reference Standard: YD/T1019-2013; ISO/IEC 11801;
ANSI/TIA/ETA 568-B; UL444
· CM/CMR

Product Details

Description
Specifications
Downloads
Reviews (0)

Basic
Model Number	XL500-UL
Standards	YD/T1019-2013; ISO/IEC 11801; ANSITIA/ETA 568-B; UL 444
Wires Specs	4205(mm)
Installation Temp	0°C ~ 70°C (32F ~ 158°F)
Working Temp	-20°C ~ 70°C (-4F~ 158*F)
Material
Conductor	Material: OFC
Conductor	Diameter: 0.5mm+0.005mm
Insulation	Material: HDPE
Insulation	Diameter: 0.9mm+0.03mm
Jacket	Thickness: 0.55+0.05mm
	Diameter: 5.0+0.4mm
	Material: PVC
	Grey
Ink Color	Black
Spacing Error	≤+0.5%
Electric Performance
Impedance	100+1502 @1.0-100.0MHz
Delay Difference	≤45ns/100m @1.0-100.0MHz (20°C)
DC Resistance	<9.5Q/100m (20°C)
DC Resistance Imbalance	Max 4.0 %
Test Model	100m Channel/ 90m Perm.ink
Package
Insulation Color	White- Blue/Blue; White-Orange/Orange White-Green/Green; White- Brown/Brown
Packing	Pull box
Length	305m
Rip Cord	Yes
Drain Wire	N/A
Carton (LWH)	352 * 353 * 220 (mm)

Specifications

Downloads

Reviews

There are no reviews yet.

Be the first to review “ZKTeco XL500-UL”

SKU: 764 Categories: Miscellaneous, ZKTeco Accessories
