ZKTeco TDM95 – Advanced Temperature Detection Module

ZKTeco TDM95 ? Advanced Temperature Detection Module

The ZKTeco TDM95 is an add-on temperature detection module that retrofits non-contact temperature reading onto existing ZKTeco T&A and access control terminals. 32.0?42.9 ?C measurement range, ?0.3 ?C accuracy, 1?15 cm reading distance, RS232/485/USB integration. The cost-effective path to temperature screening for NZ healthcare, food production and schools that already own ZKTeco terminals and don’t want to replace them with a SpeedFace V5L[TI].

Enquire Now

Trade Welcome

Downloads

Enquire Now

Trade Welcome

Description

The TDM95 solves a specific problem: a NZ site is already running ZKTeco T&A terminals, the health and safety team wants temperature screening at entry, and replacing the terminals with the SpeedFace V5L[TI] would cost ten times more than retrofitting. The TDM95 bolts on to the existing terminal and adds non-contact temperature reading on every clock-in.

How it differs from a built-in thermal terminal

SpeedFace V5L[TI]: Thermal imaging built into the terminal itself. Reads alongside facial recognition. More expensive but tighter integration.
TDM95: Add-on module that connects to an existing terminal via RS232/485/USB. Requires user to present at the module separately. Cheaper, retrofits to existing hardware.
Practical call: Specify the V5L[TI] for new builds where temperature screening is part of the brief from day one. Specify the TDM95 for retrofits onto existing ZKTeco fleets where the cost of terminal replacement isn’t justified.

Real NZ retrofit scenarios

Aged-care facilities: Existing ZKTeco T&A clocks at every staff entry; add TDM95 across the fleet to meet infection-control policy without replacement.
GP and dental clinics: Existing single-terminal clinics adding visitor and staff temperature screening as part of standing protocol.
Food production sites: Established uFace or G-series fleets ? add TDM95 at each entry rather than re-tendering the terminal hardware.
Independent and integrated schools: Existing terminals at staff and reception areas ? bolt-on the temperature module during outbreak windows.
Manufacturing sites with H&S policy: Cost-controlled retrofit to meet workplace temperature monitoring without disrupting payroll workflow.
Veterinary and animal-care facilities: Staff entry temperature screening as part of biosecurity protocol.

Specifying it

Measurement range: 32.0?42.9 ?C (89.6?109.22 ?F) with ?0.3 ?C accuracy.
Reading distance: 1?15 cm ? non-contact wrist or forehead reading.

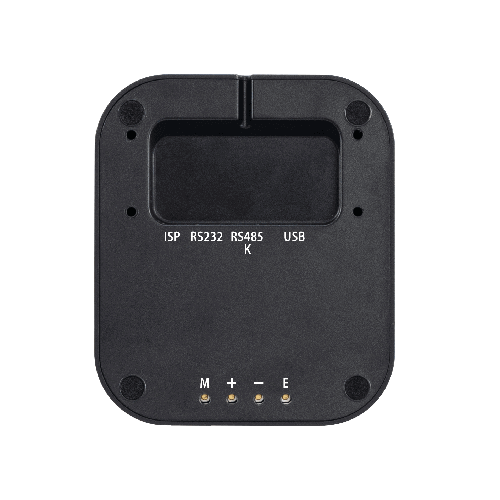

Communication: RS232, RS485 and USB ? confirm host terminal supports the chosen interface.

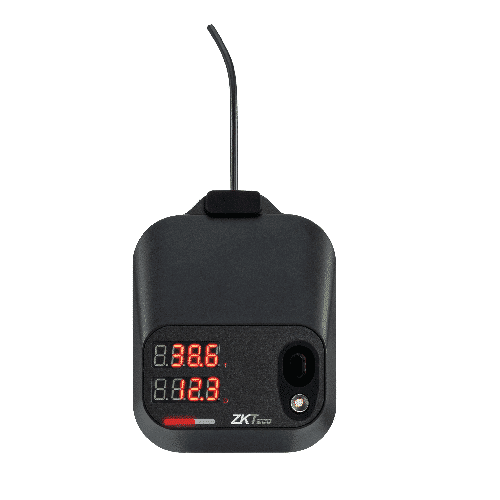

Display: 4-digit on-module screen for immediate reading visibility.
Form: 115 ? 90 ? 32 mm, 333 g ? wall-mount adjacent to the host terminal.
Compatibility: Confirm against the specific ZKTeco terminal model in your existing fleet at quote stage.
