ZKTeco ProCapture-X: POE Fingerprint Access Control Terminal with Live Finger Detecting Capability

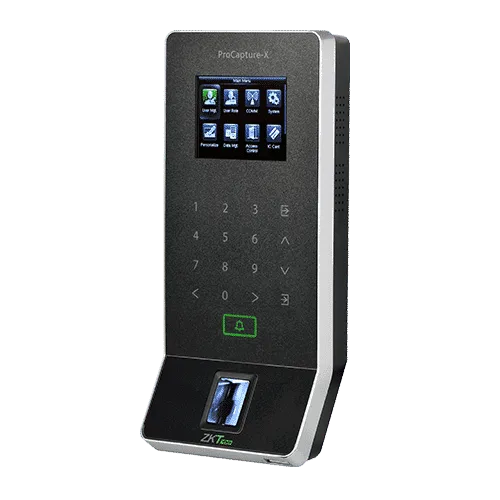

ZKTeco ProCapture-X

A POE fingerprint access control terminal with advanced Z-ID+ technology that provides a high identification rate towards dry, wet, and rough fingers and live finger detecting capability for utmost security. It has a touch keypad for superior user experience.

The fingerprint capacity is 20,000 and the card capacity is 50,000. With so many systems available, it can be overwhelming to choose the right one. Our wide range of products and solutions allows us to create a custom-fit solution that meets your needs and budget.

Features

  • Advanced Z-ID+ fingerprint sensor
  • Live finger-detecting capability
  • Touch keypad
  • Multiple communication options
  • Access control interface

Product Details

The ZKTeco ProCapture-X is a POE fingerprint access control terminal with the most advanced Z-ID+ technology, which not only possesses outstandingly high identification rate towards dry, wet, and rough fingers, but also provides the utmost security with its live finger detecting capability. The device is designed in horizon style design and is equipped with touch keypad, which provides a superior touching experience.

The fingerprint capacity is 20,000 and the card capacity is 50,000. The transaction capacity is 500,000 and compatibility options include Wiegand Slave Reader/RS485 FP Slave Reader/ZKBioSecurity Software. The hardware includes a 1.2GHz High-Speed CPU/Memory 128MB RAM/256MB Flash/Z-ID+ Fingerprint Sensor/2.4 Inches TFT-LCD Screen/125KHz EM Reader/IC Card (Optional)/Hi-Fi Voice & Indicator/Tamper Switch Alarm/Touch Keypad/POE (Standard IEEE 802.3at)/Wireless doorbell (Optional).

The access control interface includes lock relay output/alarm output/auxiliary input/exit button/door sensor/security relay box. Special functions include multiple verification modes/alive finger detection/ZK Encrypted Card (Optional)/Fingerprint Card (Optional). Standard functions include access levels/groups/holidays/DST/bell schedule/duress mode/anti-passback/record query/custom wallpaper & screen saver.

Communication options include TCP/IP/RS485 (For fingerprint & card Reader)/USB Host/Wiegand Input/Output/Wi-Fi (Optional). The operating temperature is 0°C ~ 45°C and the dimension is 200.5 × 88.5 × 28.7 mm.

With so many systems available, it can be overwhelming to choose the right one. Our wide range of products and solutions allows us to create a custom-fit solution that meets your needs and budget. Let us take the guesswork out of the equation. We’ll work with you to understand your requirements and use our expertise to deliver a cost-effective solution that exceeds your expectations. Simplify the process and find peace of mind with a solution that’s perfect for you.

Specifications

Downloads

Feeling overwhelmed by the plethora of security solutions?

At NZTeco Limited, we understand that finding the right fit can be a complex task. That's why we're here to simplify the process for you. Our team is dedicated to guiding you through our extensive range, ensuring we tailor a solution that aligns perfectly with your needs and budget.

Don't let the multitude of choices leave you puzzled. Reach out to us today for a complimentary assessment and quote. Let us make your journey to the ideal security solution effortless and clear.
