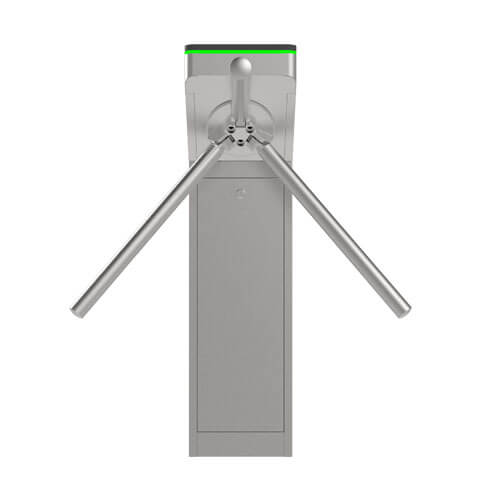

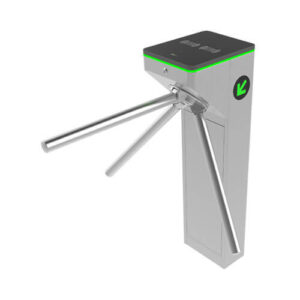

The ZKTeco mTS1000 Series tripod turnstile creates a controlled pedestrian lane where floor space is limited. It suits office receptions, gym entrances and staff access points that need a physical barrier linked to an access control system. Bi-directional operation lets the same lane manage entry and exit.
The mTS1000 is a semi-automatic turnstile. After a valid credential is accepted by the fitted access control system, the tripod arms unlock and the user passes with a light push. LED pictograms show the permitted direction. The maximum throughput is 25 people per minute; actual flow depends on the verification method and how people use the entrance.
The cabinet and tripod arms use SUS304 stainless steel, with an acrylic and glass lid. Overall dimensions are 798 × 750 × 950 mm (L × W × H), and the specified passage width is 478 mm. Allow space for the rotating arms, queuing and maintenance access when planning the layout.
QR readers, remote controls and card boxes are available as options. Specify the controller, reader technology, credentials and software together. Confirm the control signals, mounting space and integration requirements before connecting the turnstile to an existing system.
The arms drop during emergencies or power loss to open the passage. The current user manual also describes normally open and normally closed modes. Include emergency operation and access control behaviour in installation testing, and plan a separate suitable route for wheelchair users, deliveries and people who cannot use the tripod lane.
Use the mTS1000 indoors or outdoors under shelter. ZKTeco’s installation guide calls for a level, solid mounting platform, reliable earthing and clearance to open the top lid for maintenance. It advises against corrosive environments. Confirm the site conditions and the specification of the supplied hardware before ordering.
Compare other tripod turnstiles and the wider turnstile access control range, or request an mTS1000 quote. Include the entrance dimensions, expected traffic, preferred credentials and details of any existing access control system.
| Specification | Details |
|---|---|
| Product series | mTS1000 Series |
| Mechanism | Semi-automatic tripod; user-assisted rotation |
| Direction | Bi-directional |
| Maximum throughput | 25 people per minute |
| Lane width | 478 mm |
| Overall dimensions (L × W × H) | 798 × 750 × 950 mm |
| Cabinet material | SUS304 stainless steel |
| Arm material | SUS304 stainless steel |
| Lid material | Acrylic and glass |
| LED direction indicators | Supported |
| Emergency operation | Drop-arm function during emergencies and power loss |
| Working modes | Normally open / normally closed |
| Power supply | AC 110 V / 220 V, 50/60 Hz |
| Operating power | 40 W |
| Standby power | 10 W |
| Communication | RS485 |
| Input control signal | Switching signal |
| Output voltage | DC 12 V |
| Minimum gate opening/closing time | 0.6 seconds |
| Proximity switches | Three pairs |
| Operating temperature — User Manual V1.2, February 2026 | −20°C to +70°C |
| Operating humidity — User Manual V1.2, February 2026 | Less than 93%, non-condensing |
| Installation environment | Indoor / outdoor if sheltered; avoid corrosive environments |
| MCBF | 2 million cycles |
| Noise level | Less than 60 dB |
| Net weight | 35 ± 2.5 kg |
| Packed weight | 40 ± 5 kg |
| mTS1000 configuration | Base tripod turnstile |

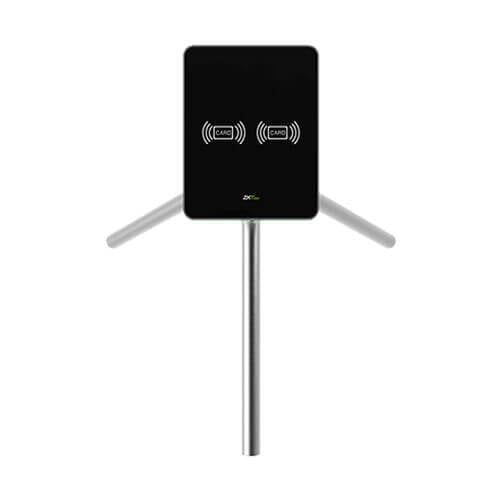

| mTS1011 configuration | With access controller and RFID reader |

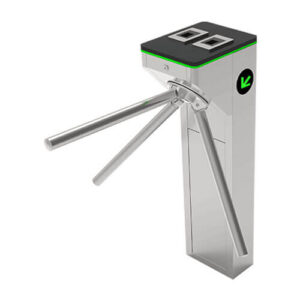

| mTS1022 configuration | With access controller and combined fingerprint/RFID reader |
| Optional accessories | Card box, remote control, QR reader |
Environmental limits above follow ZKTeco’s User Manual V1.2 (February 2026). The older V3.0 datasheet lists −28°C to +60°C and 5–80% humidity. Confirm the applicable limits for the hardware being supplied.
