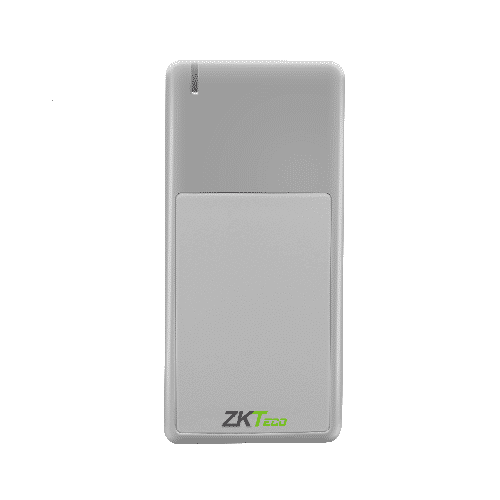

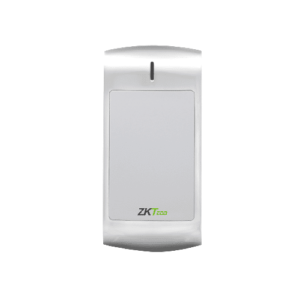

ZKTeco MR1010/MR1020: Advanced RFID Access Control Readers

Description

The MR1010/MR1020 sits below the metal-cased MR100/MR101 in the ZKTeco reader line-up ? same Wiegand output, same controller compatibility, lower cost, and ABS plastic instead of metal. Specify it whenever the door doesn’t need vandal-resistant housing and the project is sensitive to per-reader cost.

How it differs from the MR100/MR101

• Housing: ABS plastic vs metal ? the MR1010/MR1020 saves cost but is less suited to genuinely vandal-exposed sites.
• IP rating: IP65 vs IP66 ? both handle rain, but the MR100 series has a slightly higher tolerance for jet-wash and persistent driving rain.
• Tamper: Both have tamper detection; the MR100 metal cabinet adds physical resistance the plastic body doesn’t match.
• Output and behaviour: Identical ? both feed Wiegand 26/34 to your controller, both read 125 kHz EM with optional Mifare, both work with zkbio cvaccess and third-party panels.

Mix the two in a single project: MR100s on exposed outdoor entries and high-risk doors, MR1010/MR1020 on sheltered exteriors and indoor doors where the plastic body is fine.

Real NZ deployments

• Multi-door office rollouts: 20+ door projects where the cost difference between metal and plastic readers compounds quickly.
• School staff and admin doors: Indoor and sheltered-exterior staff entries with low vandal risk.
• Sheltered outdoor doors: Covered loading docks, under-canopy personnel doors, walk-down basement entries.
• Light industrial sites: Internal department doors and back-of-house entries on factory floors.
• Healthcare admin areas: Records rooms, finance offices, administrative wings ? generally low-impact environments.
• Multi-tenant building lobbies: Internal common-area doors where the building handles vandal risk at the perimeter, not the lobby reader.

Specifying it

• Card support: 125 kHz EM standard, 13.56 MHz Mifare available ? order the right variant for your credentials.
• Output: Wiegand 26/34 to ZKTeco or third-party controllers.
• Mounting: Compact form for door surrounds and standard wall mounts.
• Power: Standard 12V DC from the controller’s reader output.
