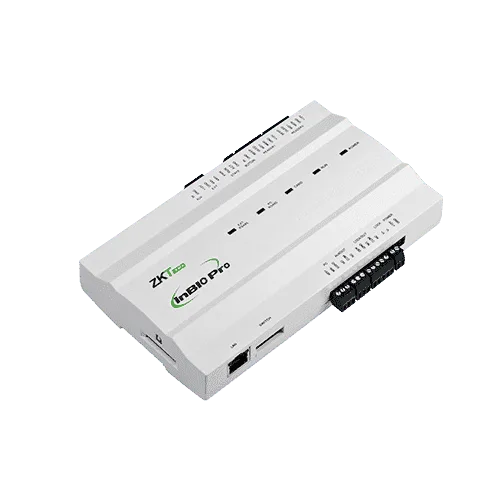

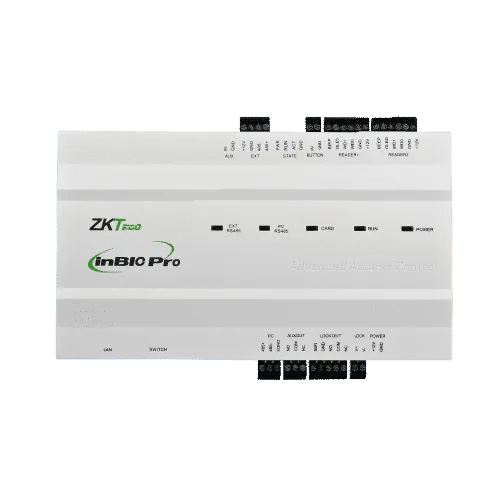

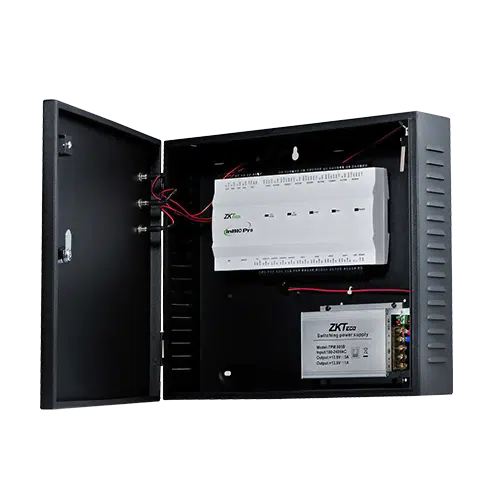

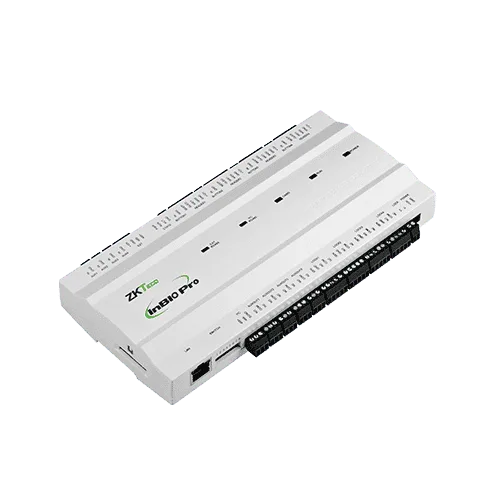

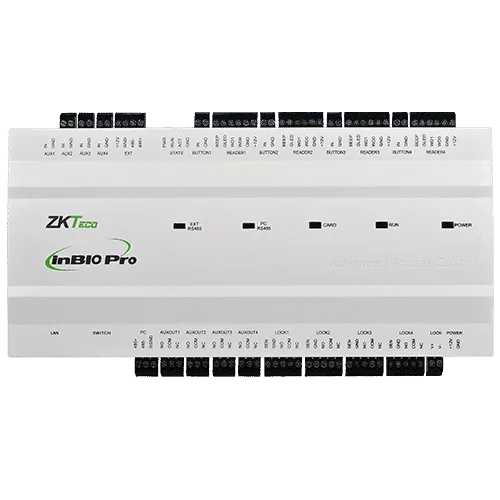

The ZKTeco InBio Pro Series is a high-end access control product line with embedded fingerprint verification and advanced functions managed through TCP/IP communication. It is available in three different models for 1, 2, or 4 door control.
[et_pb_section fb_built=”1″ _builder_version=”4.16″ custom_padding=”0px||||false|false” da_disable_devices=”off|off|off” collapsed=”on” global_colors_info=”{}” da_is_popup=”off” da_exit_intent=”off” da_has_close=”on” da_alt_close=”off” da_dark_close=”off” da_not_modal=”on” da_is_singular=”off” da_with_loader=”off” da_has_shadow=”on”][et_pb_row _builder_version=”4.16″ background_size=”initial” background_position=”top_left” background_repeat=”repeat” width=”100%” custom_padding=”0px||0px||false|false” global_colors_info=”{}”][et_pb_column type=”4_4″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_wc_breadcrumb _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_breadcrumb][et_pb_wc_cart_notice _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_cart_notice][/et_pb_column][/et_pb_row][et_pb_row column_structure=”1_2,1_2″ _builder_version=”4.16″ background_size=”initial” background_position=”top_left” background_repeat=”repeat” width=”100%” custom_padding=”0px||||false|false” global_colors_info=”{}”][et_pb_column type=”1_2″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_wc_images _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_images][/et_pb_column][et_pb_column type=”1_2″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_wc_title _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_title][et_pb_wc_rating _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_rating][et_pb_wc_price _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_price][et_pb_wc_description _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_description][et_pb_wc_add_to_cart _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_add_to_cart][et_pb_wc_meta _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_meta][/et_pb_column][/et_pb_row][et_pb_row _builder_version=”4.16″ background_size=”initial” background_position=”top_left” background_repeat=”repeat” width=”100%” global_colors_info=”{}”][et_pb_column type=”4_4″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_wc_tabs _builder_version=”4.16″ global_colors_info=”{}”] [/et_pb_wc_tabs][et_pb_wc_upsells _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_upsells][et_pb_wc_related_products _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_related_products][/et_pb_column][/et_pb_row][/et_pb_section]
| Feature | Specification |
|---|---|
| Number of Doors Controlled | InBio-160 Pro: 1 Door, InBio-260 Pro: 2 Door, InBio-460 Pro: 4 Door |
| Number of Readers Supported | InBio-160 Pro: 4 (2 RS-485 Reader, 2 26-bit wiegand reader), InBio-260 Pro: 8 (4 RS-485 Reader, 4 26-bit wiegand reader), InBio-460 Pro: 12 (8 RS-485 Reader, 4 26-bit wiegand reader） |
| Types of Readers Supported | 26-bit Wiegand and RS485 FR Series Reader |
| Number of Inputs | InBio-160 Pro: 3 (Exit Button and Door Status, 1 AUX), InBio-260 Pro: 6 (2 Exit Button, 2 Door Status, 2 AUX), InBio-460 Pro: 12 (4 Exit Button, 4 Door Status, 4 AUX) |
| Number of Outputs | InBio-160 Pro: 2 (1-Form C Relay for Lock and One Form C Relay for Aux Output), InBio-260 Pro: 4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output), InBio-460 Pro: 8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output) |
| Card Holders Capacity | 60,000 |
| Fingerprint Capacity | 20,000 |
| Log Events Capacity | 100,000 |
| Communication | TCP/IP |
| Package Dimension | 350(L) × 90(H) × 300(W)mm |
| Package Weight | InBio-160 Pro: 3.6kg, InBio-260 Pro: 3.6kg, InBio-460 Pro: 3.7kg |
| CPU | 32 bit 1.2GHz CPU |
| RAM | 128MB |
| Flash Memory | 256MB |
| Power Supply | 9.6V - 14.4V DC |
| Operating Temperature | 0 - 45 °C |
| Operating Humidity | 20% to 80% |
