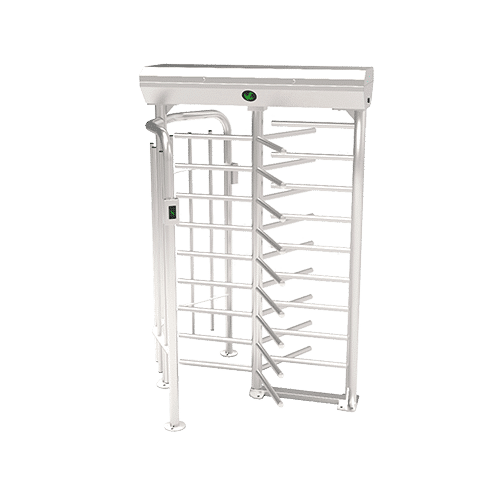

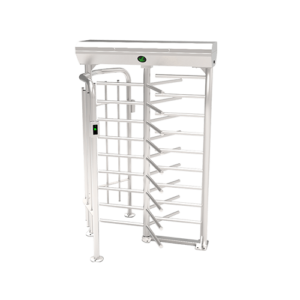

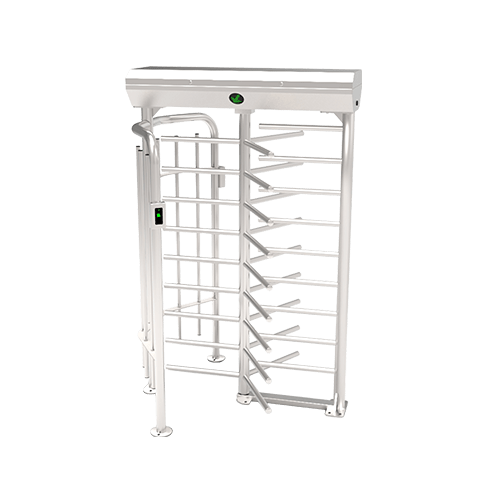

The FHT2300 is a semi-automatic, single-lane turnstile for controlled pedestrian access. Its cabinet and standard rotating barrier are made from SUS304 stainless steel. The visible LED indicator guides passage, and the IP54-rated unit is specified for indoor or outdoor use.

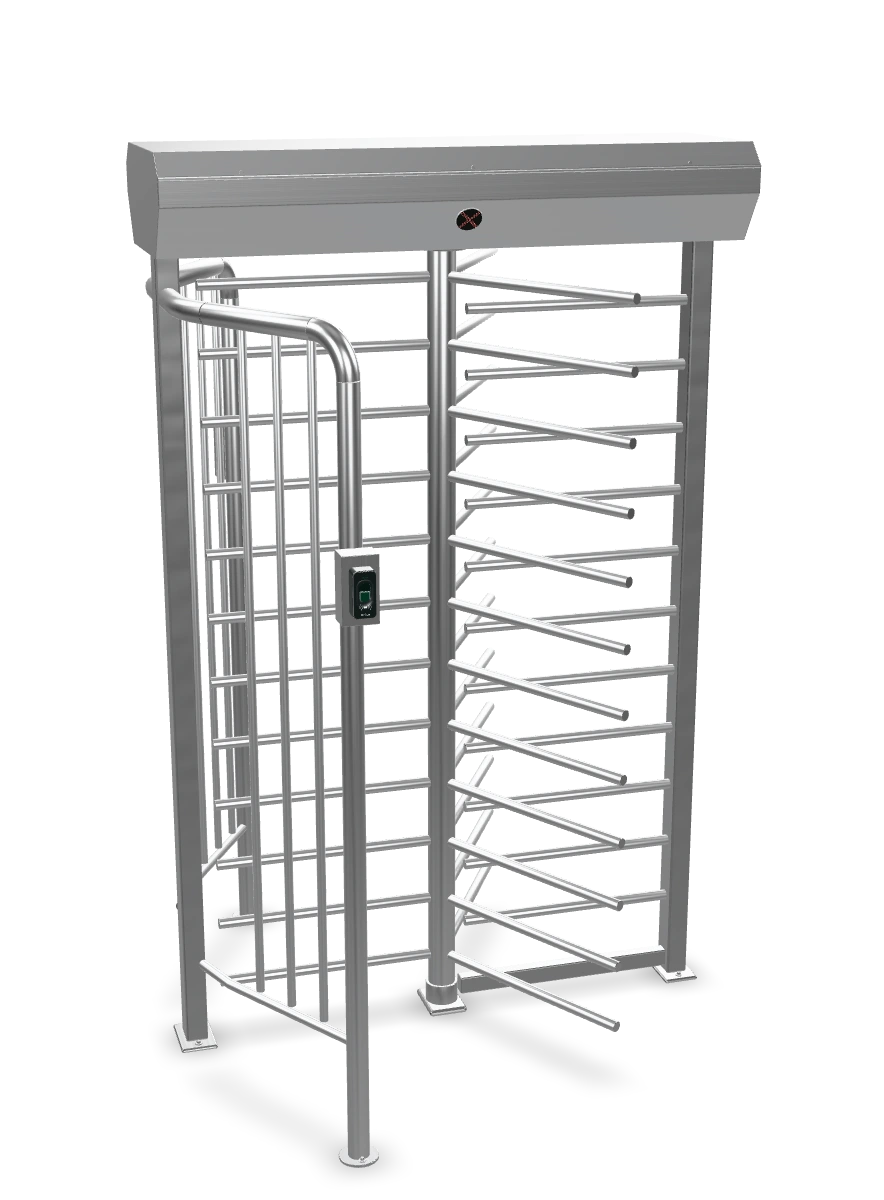

The interactive 3D model shows the reader-equipped FHT2322 configuration. Reader selection and integration should be confirmed for each installation.
The manufacturer lists industrial facilities, corporate and government security, and public transport among its applications. It advises against use in highly corrosive environments, including coastal, chemical-plant and saline-alkali settings.
| Specification / Feature | Details |
|---|---|
| Model Variants | FHT2300 (Base), FHT2311 (RFID), FHT2322 (Fingerprint + RFID) |
| Type | Full Height Turnstile – Semi-automatic |
| Cabinet Material | SUS304 Stainless Steel (Optional SUS316) |
| Barrier Material | SUS304 Stainless Steel Arms |
| Power Supply | AC 110V / 220V, 50/60Hz |
| Operating Temperature | -28°C to 60°C |
| Operating Humidity | 25% – 75% RH |
| Ingress Rating | IP54 |
| Passage Width | 580 mm |
| Dimensions (L × W × H) | 1400 × 1395 × 2220 mm |
| Packed Dimensions | 1520 × 1200 × 2320 mm |
| Net Weight | ≈ 220 kg |
| Throughput (RFID) | Up to 20 persons/minute |
| Throughput (Fingerprint) | Up to 15 persons/minute |
| Movement Mechanism | Rotating full-height cage, semi-automatic release |
| MCBF | Approximately 1 million operations |
| Indicators | LED Directional Indicators (Entry/No Entry) |
| Emergency Mode | Unlocks on power failure or fire-alarm signal |
| Anti-tailgating | Yes – Full height prevents climbing, crawling, and tailgating |
| Reader Compatibility | RFID, Fingerprint, and various integrated ZKTeco readers |
| Controller Compatibility | Works with ZKTeco C3 / InBio / Atlas Series (or third-party controllers) |
| Applications | Factories, Warehouses, Stadiums, Transport Terminals, Construction Sites, High-security Perimeters |
