ZKTeco DL-854N28B-E3: 4MP Face Detection Dome Camera

Description

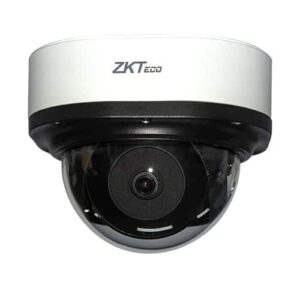

ZKTeco DL-854N28B-E3: High-Performance 4MP Dome IP Camera for Smart Surveillance

The ZKTeco DL-854N28B-E3 is a high-resolution 4MP dome IP camera designed for comprehensive video surveillance. With a 1/2.8” Sony STARVIS CMOS sensor, it delivers clear, detailed images, making it suitable for various security applications, including corporate offices, retail stores, public spaces, and more. The DL-854N28B-E3 is equipped with advanced video analytics, including face detection, line crossing, intrusion detection, and object left/lost, providing intelligent event alarms for improved security.

The camera features a motorized 3.6mm to 10.8mm lens, allowing for flexible field-of-view adjustments to meet different monitoring needs. It also includes infrared night vision with an effective range of up to 30 meters, ensuring clear visibility even in low-light conditions. The DL-854N28B-E3 supports Power over Ethernet (PoE), simplifying installation by allowing both power and data transmission over a single Ethernet cable. Its IP67-rated metal casing provides excellent protection against dust and water, making it suitable for both indoor and outdoor use.

Key Features

• High-Resolution Imaging – Equipped with a 1/2.8” Sony STARVIS CMOS sensor, the camera delivers clear 4MP resolution (2592 x 1520 pixels).
• Intelligent Video Analytics – Supports multiple intelligent video analytic functions, including face detection, line crossing, intrusion detection, and object left/lost.
• Face Detection Algorithm – Features an embedded face detection algorithm that supports white/blacklist event alarm deployment for various scenarios.
• Infrared Night Vision – Equipped with four IR LEDs, providing an effective IR range of up to 30 meters for clear visibility in low-light conditions.
• Motorized Lens – Comes with a motorized 3.6mm to 10.8mm lens, allowing flexible field-of-view adjustments.
• H.265+ Compression – Utilizes H.265+ dual-stream encoding to efficiently compress video data, reducing bandwidth and storage requirements.
• Built-in PoE – Supports Power over Ethernet (PoE), allowing for power and data transmission through a single cable, simplifying installation.
• Durable Design – Constructed with an IP67-rated metal casing, providing resistance to dust and water for both indoor and outdoor installations.

Technical Specifications

• Image Sensor: 1/2.8” Sony STARVIS CMOS
• Effective Pixels: 2592 x 1520
• Lens: Motorized 3.6mm to 10.8mm
• IR Distance: Up to 30 meters
• Video Compression: H.265+, H.265, H.264
• Ingress Protection: IP67
• Power Supply: PoE (IEEE802.3af), DC 12V±10%
• Operating Temperature: -30°C to 60°C
• Dimensions: Φ102 x 93.3 mm
• Weight: 0.50 kg

Applications

The ZKTeco DL-854N28B-E3 is ideal for applications requiring reliable and intelligent video surveillance. Its advanced features, such as intelligent video analytics and infrared night vision, make it suitable for corporate offices, retail stores, public spaces, and other areas that require high-quality monitoring and proactive security measures.

Why Choose ZKTeco DL-854N28B-E3?

• Intelligent Surveillance – Equipped with advanced video analytics, including face detection, intrusion detection, and object monitoring, for proactive security management.
• Flexible Field of View – The motorized lens allows for easy adjustments to suit different monitoring needs, ensuring comprehensive coverage of the desired area.
• Durable and Reliable – With an IP67 rating, the camera is built to withstand harsh environments, making it suitable for both indoor and outdoor use.
