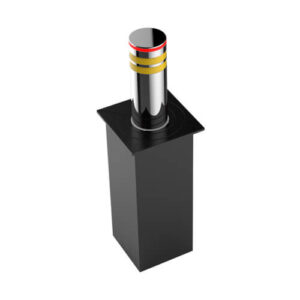

ZKTeco BOL1219-A: Automatic Bollard for Security Areas

The ZKTeco BOL1219-A is a high-quality automatic bollard which is used widely to protect security areas from vehicle intrusion. It is an ideal solution for entrance with high security requirements. Raising time of BOL1219-A is 3 seconds. Even if the intrusion is from high tonnage vehicle in high speed, the bollard will stop the vehicle easily because it is so solid that the vehicle will break after impact instead. There are also some extra safety precautions in the design of BOL1219-A. The LED bar on the bollard can effectively avoid accidents caused by poor vision of drivers at night. In case of power failure, the bollard can be lowered manually. Equipped with PLC (Programmable Logic Controller), various control methods can be achieved easily, such as biometric readers, remote control and push button station. The bollard is commonly found in customs, ports, prisons and military bases where traffic guidance is needed to protect people and property. This product provides ideal access control in areas mentioned above and raises the level of security.

The drive unit of the device is hydraulic and its diameter is 219mm (customizable). The weight is greater than or equal to 130KG and its raising height is 600mm (customizable). The underground product dimensions are 400mm * 400mm * 1100mm and its raising/lowering time is 3s. The weight load is 120t and its material is SUS304. The material thickness is 6mm (customizable) and its ingress protection rating is IP68.

The working voltage of the device is 12V DC and its working power is 350W. The working temperature ranges from -35°C to 75°C.
