A 2MP starlight IP camera offering clear video monitoring with face detection and intelligent video analytics. It features a built-in P2P cloud function for flexible remote viewing.

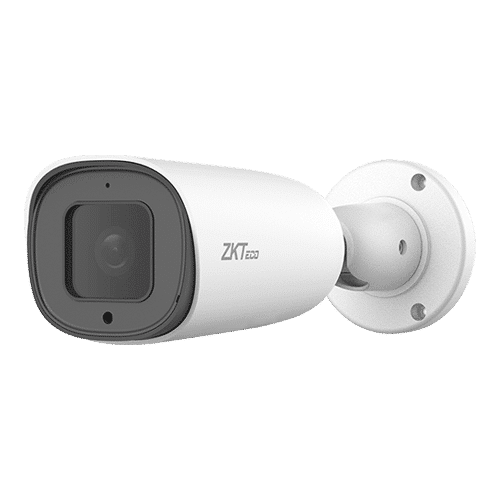

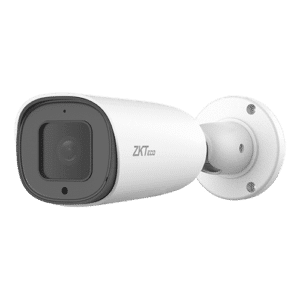

The ZKTeco BL-852T45S is part of the BioPro Series, a 2MP starlight IP camera that provides a cost-efficient solution powered by cutting-edge technology for crystal-clear video monitoring. This model comes with an embedded face detection algorithm and supports multiple industry-leading Intelligent video analytic functions, such as Face Detection, Line Crossing, Intrusion, Object Left/Lost, and Counting for smart event alarms.
One of the standout features of this model is the built-in P2P cloud function. This allows for more convenient and flexible remote real-time viewing and monitoring. The camera also utilizes H.265 dual stream encoding, an evolutionary optimization of the traditional H.264. It includes a series of encoding strategies such as dynamic ROI, smart 2D&3D noise reduction for delivering high-quality videos while greatly saving up to 70% bandwidth and storage.
With precise mechanical design and rugged metal casing rated IP67, this camera can withstand water and dust for a long time. It can work safely under extreme or unstable power conditions and adapt to a variety of harsh outdoor environments with a working temperature range from -30°C ~ 60°C.
| Feature | Description |
|---|---|
| Model | BL-852T45S |
| Image Sensor | 1/2.8” 2MP Sony STARVIS CMOS |
| Effective Pixels | 1920 * 1080 |
| Flash / DDR | 1Gb / 4Gb |
| IR LED No. | 4 (Smart IR) |
| IR Distance | 80m |
| S/N Ratio | > 52dB |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 12mm |
| Aperture | F1.6 |
| FOV | 30° |
| Optical Zoom | N/A |
| Compression | H.265 / H.264 |
| Resolution | 1080P (1920 x 1080) / 1.3MP (1280 x 960) / 720P (1280 x 720) |
| Bitrate Control | CBR / VBR |
| Bitrate | 1024Kbps ~ 4Mbps |
| Main Stream | 1080P@25fps / 960P@25fps / 720P@25fps |
| Sub Stream | Q720P(640*360)@25fps / CIF@25fps |
| Third Stream | N/A |
| Motion Detection | Support |
| Digital Zoom | Support |
| Audio Compression | G7.11u |
| Privacy Mask | 5 areas |
| WDR | DWDR |
| Day / Night | Support |
| White Balance | Support |
| Corridor Mode | Support |
| Defog | Support |
| Noise Reduction | 2D/3D DNR |
| HLC | N/A |
| Mirror / Flip | Support |
| BLC | Support |
| ROI | 4 areas |
| Anti-flicker | Support |
| IVA | Intelligent Video |
| Face Detection / Line Crossing / Intrusion / Object Left / Lost / Counting / Video Tampering | Face Detection / Line Crossing / Intrusion / Object Left / Lost / Counting / Video Tampering |
| Facial Detection | Face Detected Per Frame |
| Face Templates | N/A |
| Detected Face Size | 80 x 80 ~ 300 x 300 Pixels |
| Face Quality Filtering | Support |
| Detection Area | User-defined |
| Capture Response | ≤1s |
| Network Protocol | TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPoE, UPNP, SMTP, SNMP |
| Interoperability | ONVIF Profile S, SDK, API |
| Max. Online Users | 3 |
| Web Browser | IE / Firefox / Chrome / Safari |
| Management Software (VMS) | AntarVis 2.0 / ZKBioSecurity IVS / ZKBio Access IVS |
| Operation System | Windows |
| Mobile APP | AntarView Pro |
| P2P Cloud Service | Support |
| Note | Video streaming is not available for Firefox / Chrome / Safari |
| Ethernet | 1 RJ-45 port (10/100Mbps) |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| RS485 | N/A |
| Reset Button | N/A |
| Micro-SD Slot | N/A |
| ANR | N/A |
| USB | N/A |
| Power Supply | PoE (IEEE802.3af), DC 12V±10% |
| Power Consumption | <3W |
| Ingress Protection | IP67 |
| Dimensions (L*W*H) | 246 * 85 * 76 (mm) |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 10% ~ 90% |
| Net Weight | 0.50kg |
| Gross Weight | 0.64kg |
