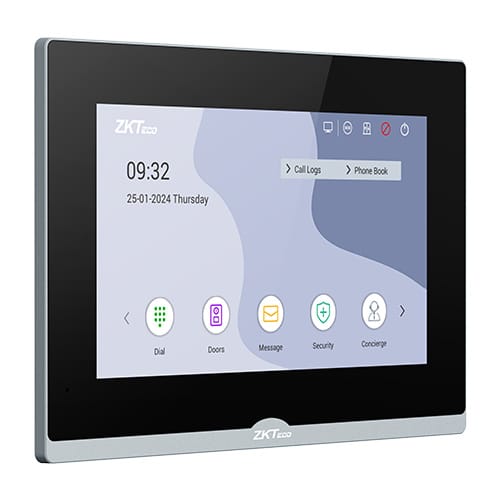

The ZKTeco VT07-B26L-W is a 7-inch smart video indoor monitor for IP intercom and apartment access systems. It supports two-way audio/video communication, Wi-Fi, PoE, SIP 2.0, emergency call, security alarm inputs and up to 8 IPC channel display.
The ZKTeco VT07-B26L-W is a smart video indoor monitor designed for apartment intercom and IP-based building access systems. It provides two-way audio/video communication, emergency call support, security alarm functions and a clear 7-inch capacitive touch screen for everyday use.
With both Wi-Fi and wired Ethernet support, the VT07-B26L-W gives installers more flexibility when planning intercom layouts. It can be powered by PoE or 12V DC, making it suitable for both new installations and retrofit projects where cabling conditions vary.
Supports Wi-Fi and two RJ45 Ethernet ports, giving installers more options for connecting the monitor to the IP intercom network.
The 1024 × 600 capacitive touch screen provides a practical interface for video intercom calls, monitoring and daily operation.
Supports up to 8 IPC channels, giving users better visibility around entrances, shared areas or connected camera points.
The VT07-B26L-W is well suited to apartments, office interiors and building intercom systems where users need a clear indoor monitor with flexible networking. It is particularly useful where Wi-Fi support can simplify installation or where a wired connection is not always practical.
The VT07-B26L-W supports two-way audio and video communication over an IP network, helping users communicate with visitors before allowing entry. It also supports emergency call functionality and security alarm inputs, making it more than just a basic indoor screen.
The VT07-B26L-W is wall-mounted on a flat surface and has a slim indoor profile. Its Wi-Fi, PoE and DC power options give installers practical flexibility while keeping the finished installation neat and easy to use.
| Specification | Details |
|---|---|
| Model | VT07-B26L-W |
| Product Type | Smart Video Indoor Monitor |
| Operating System | Linux |
| RAM | 128MB |
| ROM | 128MB |
| Front Panel | Plastic |
| Display | 7-inch TFT LCD |
| Screen | Capacitive Touch Screen |
| Display Resolution | 1024 × 600 |
| Communication | Two-Way Audio and Video Communication over IP Network |
| IPC Channel Display | Up to 8 IPC Channels |
| Power Supply | PoE IEEE 802.3af or DC 12V/2A |
| Standby Power | 2W |
| Rated Power | 9W |
| Ethernet Ports | 2 × RJ45, 10/100Mbps Self-Adaptive |
| Wi-Fi | IEEE 802.11 b/g/n, 2.4GHz |
| TF Card Slot | 1 Slot, Maximum 32GB |
| RS485 | 1 |
| Power Output | 1 × 12V/100mA |
| Doorbell Input | Maximum 8 Inputs |
| Alarm Input | 8 Sensor Zones: Smoke, Gas, PIR, Door, Window, Panic and Flood |
| Audio Codec | G.711 |
| Echo Cancellation | Supported |
| DTMF | RFC2833 |
| Microphone | Built-in Microphone |
| Speaker | 8Ω / 1W |
| Video Codec | H.264 |
| Network Protocols | SIP 2.0, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPv4, ARP, ICMP |
| Installation | Wall Mount on Flat Surface |
| Dimensions | 195 × 130 × 14.5 mm |
| Working Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Working Humidity | 10% to 90% RH (Non-condensing) |
| Typical Applications | Apartment Intercom, Indoor Video Monitoring, Wi-Fi Video Intercom, Security Alarm Integration |
