The ZKTeco VK07-C51L Kit is a 4-wire analog video intercom kit for villas and homes that need visitor calling, indoor video monitoring, door unlocking and ZSmart App remote access in one complete package.
The ZKTeco VK07-C51L Kit is a complete 4-wire analog video intercom solution designed for villas, homes and private residential entrances. The kit includes one indoor monitor, one outdoor station and installation accessories, giving users a simple way to see visitors, speak with them and unlock the door from the indoor screen.
For homes that need more than a standard doorbell, the VK07-C51L adds live video, remote unlocking through the ZSmart App, support for dual lock control and the option to connect up to two analog security cameras.

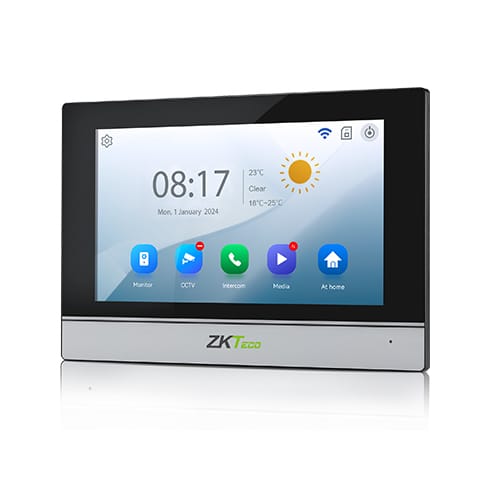

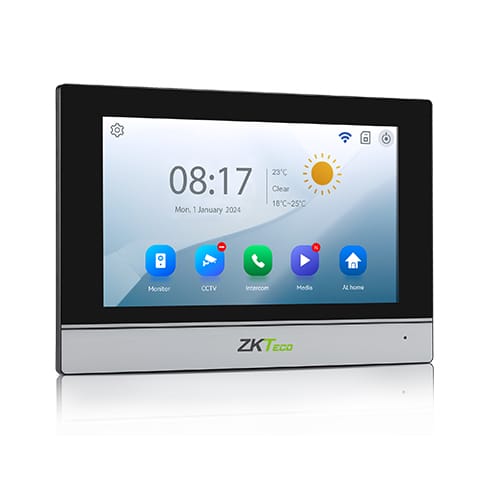

The indoor monitor provides a 7-inch touch screen with 1024 × 600 resolution for visitor calls, door unlocking, camera viewing and system settings.
The outdoor station uses a 1080P camera with a 120° viewing angle, helping users clearly see who is at the entrance before unlocking.
With ZSmart App support, users can talk to visitors and unlock the door remotely when the system is connected to the supported cloud setup.
The VK07-C51L Kit is suited to residential entrances where homeowners want a practical balance of video verification, wired reliability and mobile convenience. It is especially useful for front doors, gates and villa entrances where visitors need to be screened before access is granted.
The indoor monitor is Linux-based and provides the main interface for visitor communication, unlocking and camera viewing. It supports Wi-Fi, TF card storage up to 128GB, dual lock control and weather, calendar and standby wallpaper settings.
The outdoor station is designed for exposed residential entry points. It includes a 1080P camera, 120° viewing angle, IR function, night vision and motion detection. The IP65-rated housing helps protect against water and dust in outdoor conditions.
The VK07-C51L Kit supports up to 4 indoor monitors and 2 outdoor stations, making it a practical option for larger homes or properties with more than one entry point. The outdoor station is powered by the indoor monitor, keeping the 4-wire layout straightforward for residential installation.
| Specification | Details |
|---|---|
| Model | VK07-C51L Kit |
| Product Type | 4-Wire Analog Video Intercom Kit for Villa |
| Kit Includes | Indoor Monitor, Outdoor Station and Installation Accessories |
| System Type | 4-Wire Analog Video Intercom |
| Supported Mobile App | ZSmart |
| Typical Applications | Villas, Homes, Residential Door Entry, Visitor Communication, Remote Unlocking |
| Indoor Monitor | |
| Indoor Monitor Operating System | Linux |
| Indoor Monitor Display | 7-inch Touch Screen |
| Indoor Monitor Resolution | 1024 × 600 |
| Indoor Monitor Storage | Built-in 6MB Storage Space |
| TF Card Support | Maximum 128GB |
| Dual Lock Control | Supported |
| Analog Security Camera Support | Maximum 2 Analog Security Cameras |
| Indoor Monitor Wi-Fi | IEEE 802.11 a/b/g @ 2.4GHz |
| Indoor Monitor Power Supply | DC 15V 1.2A |
| Indoor Monitor Standby Power | ≤3W |
| Indoor Monitor Operating Power | ≤10W |
| Use Distance | ≤100m |
| Languages | Chinese, English, German, French, Russian, Spanish, Arabic, Portuguese |
| Indoor Monitor Material | Tempered Glass Panel + ABS Plastic |
| Indoor Monitor Installation | Wall Mount |
| Indoor Monitor Dimensions | 195 × 132 × 18 mm |
| Outdoor Station | |
| Outdoor Station Operating System | Linux |
| Video Compression | H.264 |
| Camera | 1080P |
| Camera Viewing Angle | 120° |
| Visible Range at Night | 0.2m to 3m |
| Outdoor Station Power Supply | Powered by Indoor Monitor |
| Motion Detection | Supported |
| Night Vision | Supported |
| IR Function | Supported, 0.2m to 3m, 0.01Lux |
| Audio Input | 1 × Omni-Directional Microphone |
| Audio Output | Built-in Speaker |
| Bi-Directional Talk | Supported |
| Ingress Protection Rating | IP65 |
| Outdoor Station Operating Temperature | -30°C to +60°C |
| Outdoor Station Operating Humidity | 10% to 90% RH Non-Condensing |
| Outdoor Station Casing Material | Aluminium Alloy + ABS Plastic |
| Outdoor Station Installation | Flush Mount with Rain Cover on Flat Surface |
| Outdoor Station Dimensions | 125 × 52 × 45 mm |
| System Expansion | Supports up to 4 Indoor Monitors and 2 Outdoor Stations |
