The ZKTeco VK07-C52L Kit is a 4-wire analog video intercom kit for villas and homes that need visitor calling, indoor video monitoring, door unlocking and mobile app access in one simple package.
The ZKTeco VK07-C52L Kit is a complete 4-wire analog video intercom solution designed for villas, homes and smaller residential entry points. The kit includes one indoor monitor, one outdoor station and installation accessories, giving users a practical way to see visitors, speak with them and unlock the door from the indoor screen.
For residential sites that want a cleaner upgrade from a basic doorbell, the VK07-C52L Kit adds video verification, remote unlocking through the ZSmart App, IC/NFC access at the outdoor station and support for up to two analog security cameras.

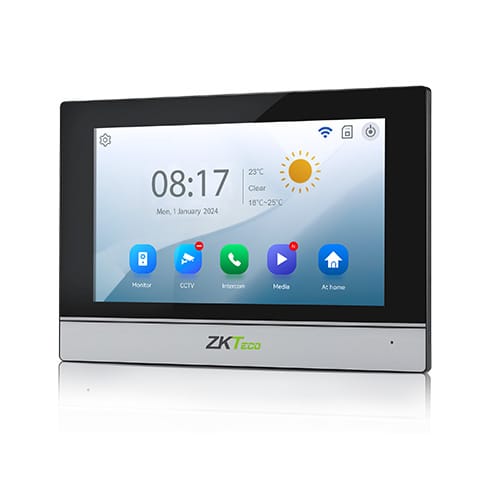

The indoor monitor uses a 7-inch IPS HD touch screen with 1024 × 600 resolution, giving users a clear interface for visitor calls, unlocking and system settings.

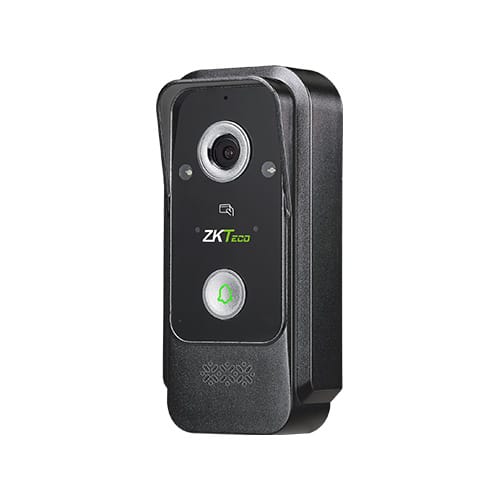

The outdoor station includes a 1080P camera with a 120° viewing angle, night vision, IR support and motion detection for improved visibility at the entrance.
With ZSmart App support, users can talk to visitors and unlock the door remotely when the system is connected for mobile access.
The VK07-C52L Kit is best suited to residential sites where a simple but capable video intercom system is needed. It gives homeowners a more informed way to manage visitors without relying only on audio or a standard doorbell.
The indoor monitor is Linux-based and provides a 7-inch touch interface for visitor viewing, communication and unlocking. It supports dual lock control, TF card storage up to 128GB, Wi-Fi connectivity and ZSmart App access.
The outdoor station is built for exposed entry points, with an IP65-rated housing, 1080P camera, 120° viewing angle, IR support, night vision and motion detection. It also supports IC card and NFC authentication, with a standard card capacity of up to 1,000 users.
The VK07-C52L Kit supports up to 4 indoor monitors and 2 outdoor stations, making it useful for homes that need more than one indoor screen or more than one entry point. The outdoor station is powered by the indoor monitor, and the system can connect to the ZSmart App through a wireless router and cloud-based IoT server.
| Specification | Details |
|---|---|
| Model | VK07-C52L Kit |
| Product Type | 4-Wire Analog Video Intercom Kit for Villa |
| Kit Includes | Indoor Monitor, Outdoor Station and Installation Accessories |
| System Type | 4-Wire Analog Video Intercom |
| Supported Mobile App | ZSmart |
| Typical Applications | Villas, Homes, Residential Door Entry, Visitor Communication, Remote Unlocking |
| Indoor Monitor | |
| Indoor Monitor Operating System | Linux |
| Indoor Monitor Display | 7-inch Touch Screen |
| Indoor Monitor Resolution | 1024 × 600 |
| Indoor Monitor Storage | Built-in 6MB Storage Space |
| TF Card Support | Maximum 128GB |
| Dual Lock Control | Supported |
| Analog Security Camera Support | Maximum 2 Analog Security Cameras |
| Indoor Monitor Wi-Fi | IEEE 802.11 a/b/g @ 2.4GHz |
| Indoor Monitor Power Supply | DC 15V 1.2A |
| Indoor Monitor Standby Power | ≤3W |
| Indoor Monitor Operating Power | ≤10W |
| Use Distance | ≤100m |
| Languages | Chinese, English, German, French, Russian, Spanish, Arabic, Portuguese |
| Indoor Monitor Material | Tempered Glass Panel + ABS Plastic |
| Indoor Monitor Installation | Wall Mount |
| Indoor Monitor Dimensions | 195 × 132 × 18 mm |
| Outdoor Station | |
| Outdoor Station Operating System | Linux |
| Video Compression | H.264 |
| Camera | 1080P |
| Camera Viewing Angle | 120° |
| Visible Range at Night | 0.2m to 3m |
| Outdoor Station Power Supply | Powered by Indoor Monitor |
| Motion Detection | Supported |
| Night Vision | Supported |
| IR Function | Supported, 0.2m to 3m, 0.01Lux |
| Audio Input | 1 × Omni-Directional Microphone |
| Audio Output | Built-in Speaker |
| Bi-Directional Talk | Supported |
| Authentication Methods | IC Card / NFC |
| Card Capacity | 1,000 Users, 1:N Standard |
| Ingress Protection Rating | IP65 |
| Outdoor Station Operating Temperature | -30°C to +60°C |
| Outdoor Station Operating Humidity | 10% to 90% RH Non-Condensing |
| Outdoor Station Casing Material | Aluminium Alloy + ABS Plastic |
| Outdoor Station Installation | Flush Mount with Rain Cover on Flat Surface |
| Outdoor Station Dimensions | 125 × 52 × 45 mm |
| System Expansion | Supports up to 4 Indoor Monitors and 2 Outdoor Stations |
