The ZKTeco VK07-A50L Kit is a cost-effective 4-wire analog video intercom kit for villas and homes that need visitor calling, 2-way audio, indoor viewing, door unlocking and local photo/video recording.
The ZKTeco VK07-A50L Kit is a practical 4-wire analog video intercom kit designed for villas, homes and smaller residential entry points. It includes an indoor monitor and outdoor station, giving users a simple way to see visitors, speak with them and unlock the door from inside the property.
The VK07-A50L is a strong fit where a reliable wired intercom is preferred over a more complex IP system. It provides 2-way audio communication, a clear 7-inch indoor display, local recording and a weather-resistant outdoor station with night vision.
The indoor monitor uses a 7-inch IPS LCD screen with 1024 × 600 resolution, providing a clear viewing point for visitor calls and playback.
The outdoor station includes a 2MP camera with a 120° viewing angle and night vision range up to 3 metres for improved entrance visibility.
The monitor supports manual and automatic photo/video recording, with playback on the indoor monitor or export for viewing on a computer.
The VK07-A50L Kit is suited to homeowners who want a straightforward video intercom system without overcomplicating the installation. It is especially useful for front doors, gates and villa entrances where basic visitor identification and door release are required.
The indoor monitor provides the main user interface for calls, viewing, unlocking and recording. It supports 90-second intercom sessions, 30-second manual video recording, 60-second automatic recording and loop overwrite storage.

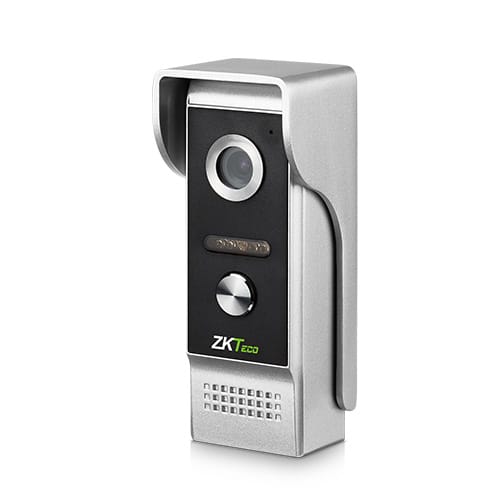

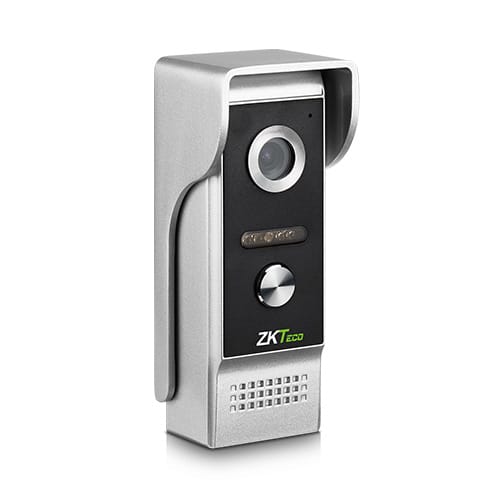

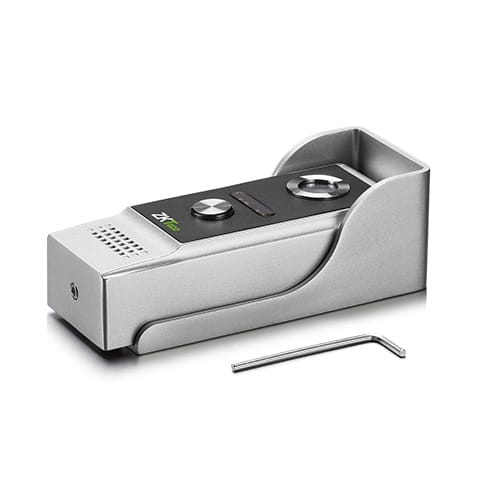

The outdoor station is built with aluminium alloy and ABS plastic, with IP65 water and dust resistance for outdoor residential use. Its 2MP camera, 120° viewing angle, night vision and motion detection help improve visibility at the entrance.
The VK07-A50L Kit uses a 4-wire analog connection between the outdoor station and indoor monitor. The outdoor station is powered by the indoor monitor, helping keep the system layout simple for residential installations.
| Specification | Details |
|---|---|
| Model | VK07-A50L Kit |
| Product Type | 4-Wire Analog Video Intercom Kit for Villa |
| System Type | 4-Wire Analog Video Intercom |
| Typical Applications | Villas, Homes, Residential Door Entry, Visitor Communication, Door Unlocking |
| Indoor Monitor | |
| Indoor Monitor Operating System | Linux |
| Indoor Monitor Display | 7-inch IPS LCD Screen |
| Indoor Monitor Resolution | 1024 × 600 |
| Indoor Monitor Power Supply | DC 15V 1.2A |
| Indoor Monitor Standby Power | ≤3W |
| Indoor Monitor Operating Power | ≤10W |
| Use Distance | ≤100m |
| Intercom Call | Supported, 90 Seconds |
| Surveillance Session | 30 Seconds |
| System Auto Recording | 60 Seconds |
| Doorbell Tone | 10 Tunes Available |
| Manual Photo and Video Recording | Supported |
| Automatic Video Recording | Supported |
| Dual Lock Control | Supported, Optional |
| TF Card Support | Up to 128GB |
| Video Recording Duration | 30 Seconds Manual / 60 Seconds System Auto Recording |
| Photo and Video Storage Format | JPG Photo / AVI Video / Loop Overwrite |
| Recorded Files Playback | Playback on Indoor Monitor / Export and View on Computer |
| Indoor Monitor Material | ABS Plastic |
| Indoor Monitor Installation | Wall Mount |
| Indoor Monitor Dimensions | 195 × 132 × 20 mm |
| Outdoor Station | |
| Outdoor Station Operating System | Linux |
| Video Compression | H.264 |
| Camera | 1080P / 2MP |
| Camera Viewing Angle | 120° |
| Visible Range at Night | 0.2m to 3m |
| Outdoor Station Power Supply | Powered by Indoor Monitor |
| Motion Detection | Supported |
| Night Vision | Supported |
| Audio Input | 1 × Omni-Directional Microphone |
| Audio Output | Built-in Speaker |
| Bi-Directional Talk | Supported |
| Ingress Protection Rating | IP65 |
| Outdoor Station Operating Temperature | -30°C to +60°C |
| Outdoor Station Operating Humidity | 10% to 90% RH Non-Condensing |
| Outdoor Station Casing Material | Aluminium Alloy + ABS Plastic |
| Outdoor Station Installation | Flush Mount with Rain Cover on Flat Surface |
| Outdoor Station Dimensions | 125 × 52 × 45 mm |
| System Expansion | Supports up to 4 Indoor Monitors and 2 Outdoor Stations |
| Installation Style | Plug and Play 4-Wire Installation |
