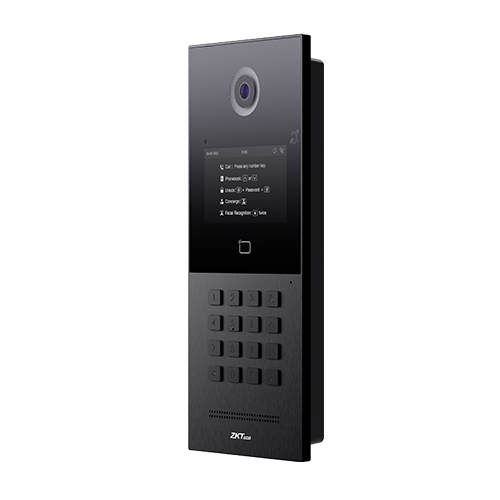

The ZKTeco VEX-B24A is a smart outdoor video station for entrances that need visitor intercom, facial recognition, card access and PIN verification in one professional unit. It is well suited to apartments, offices, gated entrances and commercial sites where secure visitor verification and flexible unlocking methods are required.
The ZKTeco VEX-B24A is a smart outdoor video station designed for modern entry points where visitor communication and secure access control need to work together. It combines video intercom, facial recognition, RFID card access, mobile NFC and PIN verification in one outdoor unit.
For apartments, offices, gated entrances and commercial buildings, the VEX-B24A gives users a practical way to identify visitors, support authorised user entry and manage door unlocking through a professional intercom system.
Supports facial recognition for door unlocking, making it suitable for sites that want faster, contactless authorised entry.
The 2MP CMOS camera with WDR mode supports high-quality video for visitor verification before access is granted.
Includes an audio induction loop for hearing assistance and Braille button surfaces for visually impaired users.
The VEX-B24A is best suited to entry points that need more than a simple intercom or keypad. It provides multiple unlocking methods, visitor communication and access control connectivity in one flush-mounted outdoor station.
With support for facial recognition, IC/ID cards, mobile NFC and PIN codes, the VEX-B24A gives property managers and installers flexibility when designing an entry system. It also includes RS485, Wiegand, SIP 2.0 and ONVIF support for integration with compatible intercom and access control environments.
The aluminium and tempered glass front panel gives the VEX-B24A a clean, professional finish. With IP65 protection, IK06 vandal resistance and an operating temperature range from -40°C to +55°C, it is designed for demanding outdoor access environments.
| Specification | Details |
|---|---|
| Model | VEX-B24A |
| Product Type | Smart Video Outdoor Station |
| Operating System | Android 6.0 |
| RAM | 1GB |
| ROM | 8GB |
| Front Panel | Aluminium + Tempered Glass |
| Display | 4.3-inch TFT LCD |
| Display Resolution | 480 × 272 |
| Keypad | Physical Keypad, 16 Keys |
| Camera | 2MP CMOS with WDR |
| Video Codec | H.264 |
| Video Resolution | Up to 1920 × 1080 |
| Viewing Angle | 120° horizontal / 80° vertical / 130° diagonal |
| Maximum Image Transfer Rate | 1080p at 25fps |
| Supplement Light | White LED |
| Audio Codec | G.711 |
| Echo Cancellation | Supported |
| DTMF | RFC2833 |
| Microphone | Built-in Microphone |
| Speaker | 8Ω / 1W |
| Authentication Methods | Facial Recognition / IC Card / ID Card / Mobile NFC / PIN Code |
| Card Type | 13.56MHz IC Card / 125kHz ID Card |
| Face Template Capacity | 20,000 |
| User Capacity | 20,000 Users |
| Card Capacity | 60,000 Cards |
| Power Supply | PoE+ IEEE 802.3at or DC 12V/2A |
| Standby Power | 8W |
| Rated Power | 16W |
| Ethernet Port | 1 × RJ45, 10/100Mbps Self-Adaptive Ethernet |
| Wiegand Port | 1 |
| RS485 Port | 1 |
| Relay Outputs | 3 |
| Inputs | 4 |
| IR Sensor | Supported |
| Reset Button | 1 |
| Network Protocols | SIP Ver 2.0, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPv4, ARP, ICMP, ONVIF |
| Accessibility Features | Audio Induction Loop for Hearing Assistance, Braille Button Surface for Visually Impaired Users |
| Protection Rating | IP65 Water and Dust Proof / IK06 Vandal Resistant |
| Installation | Flush Mount on Flat Surface |
| Dimensions | 295 × 133 × 43 mm |
| Operating Temperature | -40°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Working Humidity | 10% to 90% RH (Non-condensing) |
| Typical Applications | Apartments, Offices, Gated Entrances, Facial Recognition Intercom Systems, Commercial Door Access |
