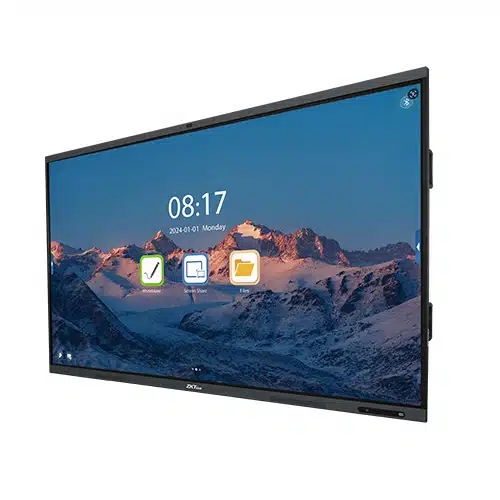

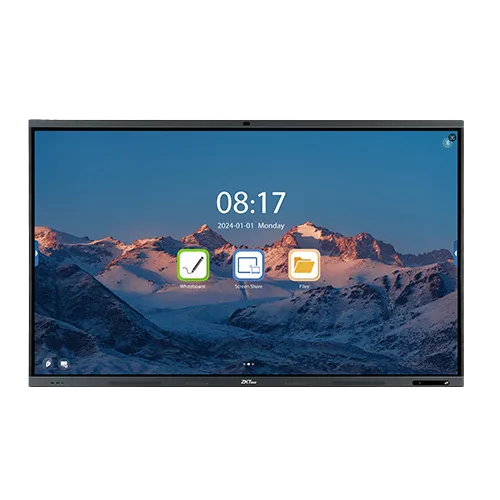

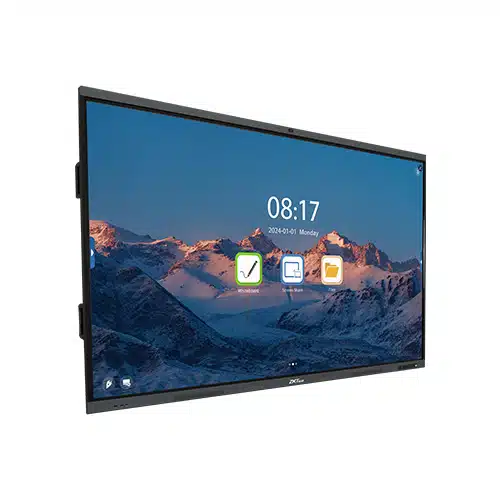

The ZKTeco SC02-I365/75/86A is a 4K smart interactive whiteboard designed for meeting rooms, training spaces, classrooms and showrooms. Available in 65-inch, 75-inch and 86-inch models, it combines a large UHD touch display, built-in camera, microphone array, NFC, Wi-Fi and collaboration tools in one professional display.
The ZKTeco SC02-I365/75/86A is a professional 4K smart interactive whiteboard built for teams that need clearer presentations, easier collaboration and better hybrid meeting experiences. It is designed for business, education and showroom environments where people need to present, write, share and communicate from one large display.
With 65-inch, 75-inch and 86-inch options, the SC02 series can be matched to different room sizes, from compact meeting spaces through to training rooms and larger presentation areas.
Advanced infrared touch supports up to 50 touch points, helping teams write, annotate and collaborate in real time.
The built-in 48MP camera, 8-microphone array, face tracking and sound localisation support make it suitable for remote video calling and hybrid meetings.
The 4K UHD screen, anti-glare surface and wide 178° viewing angle help keep content readable in meeting rooms, classrooms and bright presentation spaces.
The SC02 series is ideal for spaces where standard screens or projectors no longer provide enough flexibility. It supports screen sharing, whiteboard writing and video collaboration, making it useful for both everyday meetings and more structured training sessions.
The anti-glare display surface helps reduce reflections, while the close-to-zero bonding gap between the tempered glass and screen supports more precise writing and annotation. Touch response is fast, with single and multi-touch response times of 3ms or less.
The SC02 series supports Wi-Fi 6, Bluetooth 5.0, NFC, USB, HDMI, Type-C, LAN, RS232, audio connections and an OPS slot for an optional slot-in PC. Android 14 is built in, with Windows 11 available as an optional configuration.
This gives businesses, schools and presentation spaces a flexible display platform that can support interactive whiteboarding, content sharing and video collaboration without relying on a traditional projector setup.
| Screen Size | 65 inch, 75 inch, 75 inch Special Bundle – includes stand + Windows OPS module, 86 inch |
|---|
| Specification | Details |
|---|---|
| Model | SC02-I365A / SC02-I375A / SC02-I386A |
| Product Type | 4K Smart Interactive Whiteboard |
| Screen Sizes | 65-inch / 75-inch / 86-inch |
| Screen Type | 65-inch: ADS / 75-inch: ADS / 86-inch: IPS |
| Backlight | D-LED |
| Backlight Life | 50,000 Hours Minimum / Typical |
| Resolution | 3840 × 2160 Pixels |
| Brightness | 450cd/m² Typical |
| Contrast Ratio | 1200:1 Typical |
| Response Time | 8ms Typical |
| Refresh Rate | 60Hz |
| Aspect Ratio | 16:9 |
| Viewing Angle | 178° Horizontal / 178° Vertical |
| Display Colours | 1.07B (8bit + FRC) |
| Bonding Technology | Gap Between Tempered Glass and Screen Close to 0 |
| Touch Technology | Advanced Infrared Touch Technology |
| Touch Points | Up to 50 |
| Touch Response Time | Single Touch ≤ 3ms / Multiple Touch ≤ 3ms |
| Touch Accuracy | Centre 90% Touch Area: 1mm |
| Anti-Glare | High Transparent + Smooth + Anti-Glare |
| Glass Hardness | 9H Pencil Hardness / 7 Mohs Hardness Tempered Glass |
| Writing Height | ≤ 1mm |
| CPU | Quad-Core A73 + Quad-Core A53 |
| GPU | Mali-G52 MP8 |
| Memory | 8GB RAM |
| Storage | 128GB ROM |
| Operating System | Android 14 / Windows 11 Optional |
| Front Ports | USB 3.0 × 2, Type-C 65W × 1 |
| Bottom Ports | Audio In × 1, VGA × 1, LAN In/Out × 2, RS232 × 1, MIC In × 1, HDMI Out × 1, Audio Out × 1, SPDIF × 2 |
| Side Ports | Touch-USB × 2, DP × 1, HDMI In (ARC) 2.0 × 1, HDMI In (CEC) 2.0 × 1, Type-C × 1, USB 2.0 × 1, USB 3.0 × 2, OPS Slot × 1 |
| Wi-Fi | Wi-Fi 6: IEEE 802.11 ax/ac/b/g/n, 5GHz / 2.4GHz |
| Bluetooth | BT 5.0: 2.1 + EDR / 4.2 / 5.0 |
| NFC | ISO / IEC 14443 A; ISO / IEC 14443 B |
| Camera | 48MP Camera |
| Camera FOV | Diagonal 114.9° |
| Face Tracking | Supported |
| Sound Localisation | Supported |
| Microphone Array | 8 Microphones |
| Pickup Range | Supported |
| 3D Noise Reduction | Supported |
| AEC & AGC | Supported |
| Speaker | 2 × 20W + 1 × 20W Subwoofer Optional |
| Operating Power | 100V–240V AC, 50/60Hz |
| Standby Power Consumption | < 0.5W |
| Power Consumption at 100% Brightness | 65-inch: 178W Typical / 75-inch: 215W Typical / 86-inch: 278W Typical |
| Dimensions | 65-inch: 1483.9 × 86.7 × 911.6 mm / 75-inch: 1705 × 86.9 × 1036 mm / 86-inch: 1950.4 × 86.9 × 1174 mm |
| Package Dimensions | 65-inch: 1640 × 185 × 1010 mm / 75-inch: 1860 × 185 × 1125 mm / 86-inch: 2095 × 185 × 1265 mm |
| Net Weight | 65-inch: 40.5kg / 75-inch: 53.95kg / 86-inch: 66.85kg |
| Weight with Packaging | 65-inch: 50.2kg / 75-inch: 64.5kg / 86-inch: 79.05kg |
| Case Material | Aluminium Alloy and Sheet Metal |
| Colour | Blue Grey |
| Expected Lifespan | 50,000 Hours |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | 10°C to 60°C |
| Operating Humidity | 20% to 80% RH (Non-condensing) |
| Storage Humidity | 10% to 60% RH (Non-condensing) |
| Included Accessories | Power Cable × 1, USB Cable × 1, HDMI Cable × 1, Remote Controller × 1, Wall Mount × 1, Stylus Pen × 2, Eraser × 1 |
| Optional Accessories | Movable Bracket, OPS, Wireless Dongle |
| Typical Applications | Training Rooms, Meeting Rooms, Showrooms, Classrooms, Collaboration Spaces |
