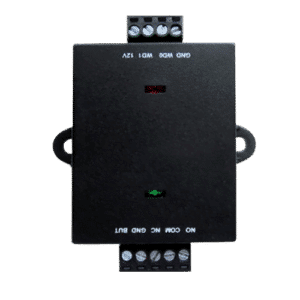

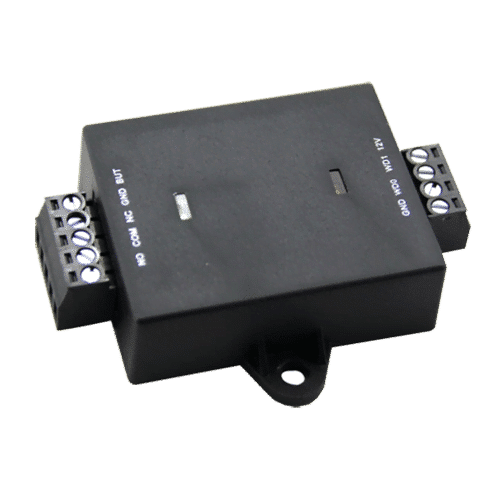

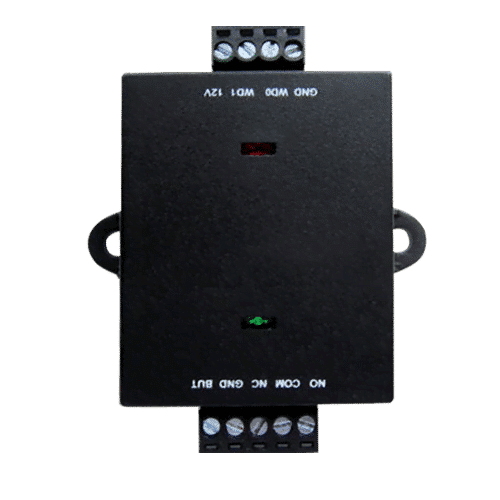

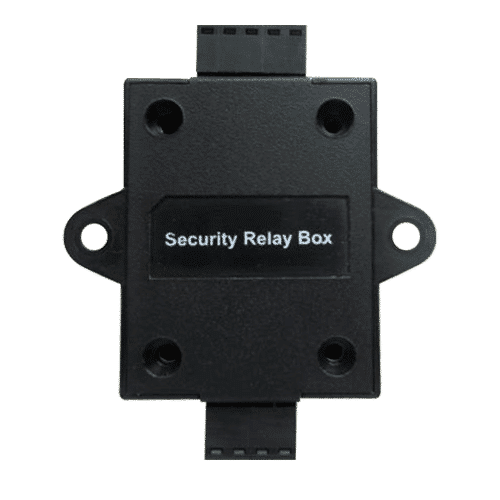

ZKTeco SRB

Security Relay Box (SRB) is a value-added and cost effective single door controller to enhance access control in a simple and secure way. It receives encrypted wiegand signal from ZKAccess standalone access control devices to control the lock hence providing high safety for the door.

Product Details

Description
Specifications
Downloads

Model	SRB
Display	2 LED indicator
Built-in Relay	1
Reader Support	ZKTeco Standalone devices that have wiegand out
Input Format	Encrypt wiegand
Output Contact	Electric lock, Exit button
Lock Control Delay	Default 5s (Configurable on fingerprint reader/Software)
Power In	12V DC, 60mA
Operating Tem.	0 - 70 ºC
Operating Humidity	10%-90%
Dimension	504017 mm

Specifications

Downloads

SKU: 156 Categories: Miscellaneous, ZKTeco Accessories
