Description

Overview

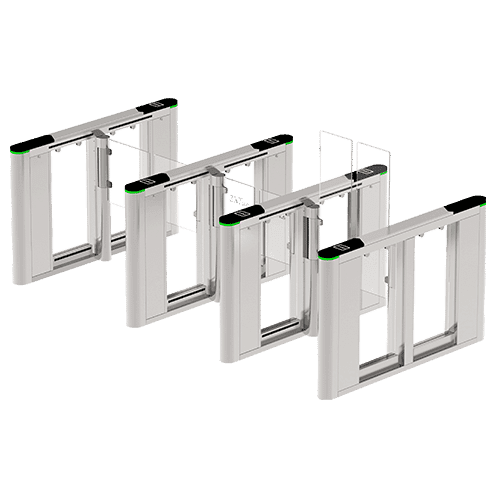

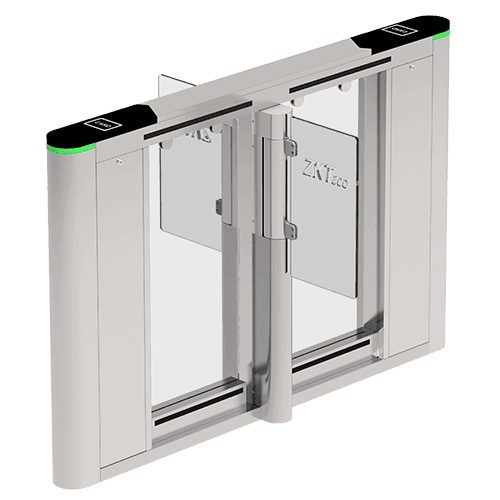

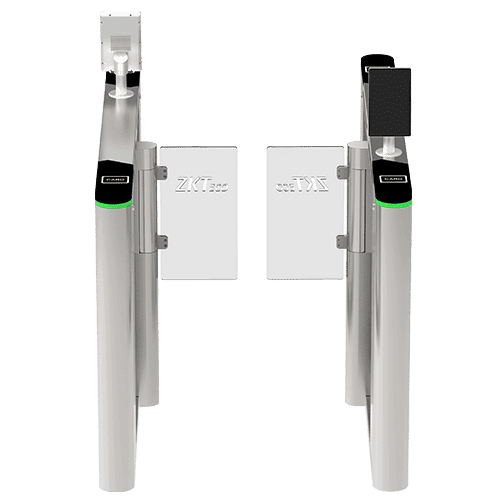

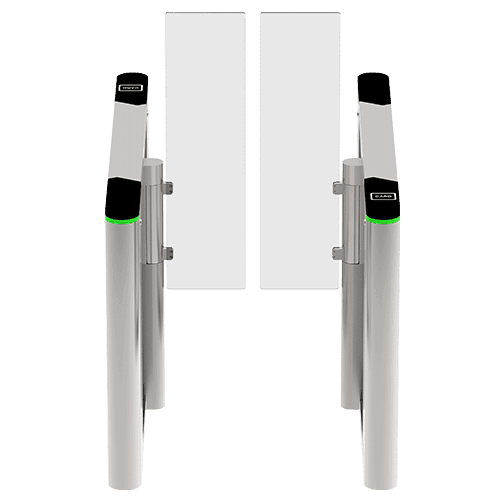

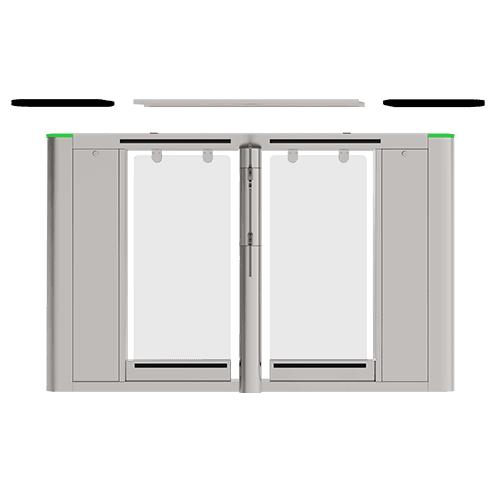

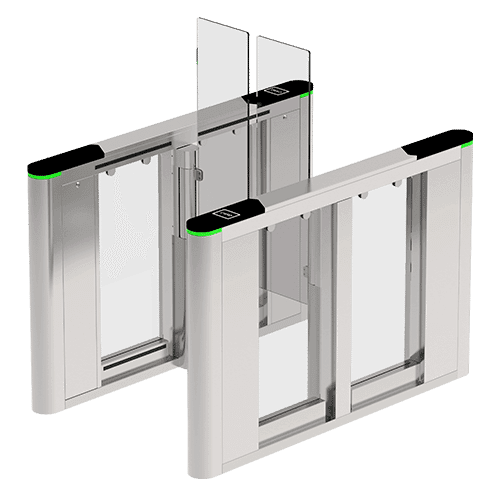

The ZKTeco SBTL8000 Series is a premium single-lane speed gate system engineered for high-traffic environments requiring secure and efficient access control. Built from SUS304 stainless steel and finished with acrylic barriers, it combines durability, aesthetics, and fast biometric processing.

Model Variants

• SBTL8000 – Base model (reader not included)
• SBTL8011 – Built-in controller and RFID reader
• SBTL8022 – Built-in controller with fingerprint & RFID reader
• SBTL8033 – Built-in controller with visible light facial recognition

Key Features

• Compact single-lane swing gate design
• SUS304 stainless steel cabinet and acrylic barriers
• Supports RFID, fingerprint, or facial recognition access
• Throughput speed: up to 30 people per minute
• Emergency mode supported for safety and evacuation
• Optional high barrier wings and ADA lane configurations

Technical Specifications

• Power: AC 100~120V / 200~240V, 50/60Hz
• Working Temperature: -28°C to 60°C
• Working Humidity: 20%–95% RH (non-condensing)
• Lane Width: 660mm
• Throughput Speed: Max. 30 users/min
• Dimensions (L×W×H): 1600 × 1040 × 1023 mm
• Weight: 130 kg (net) / 150 kg (packed)

Applications

• Corporate lobbies and headquarters
• Commercial buildings and visitor management
• Fitness centres and stadiums
• Government and education facilities

ZKTeco SBTL8000 Series is ideal for environments requiring secure, high-speed entry with a modern aesthetic – backed by flexible integration with ZKTeco’s biometric and RFID readers.
