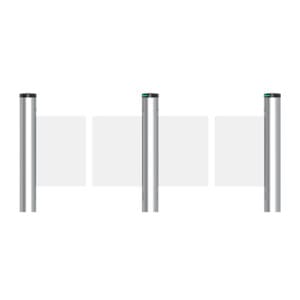

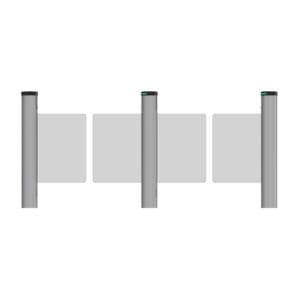

A modular, aesthetically advanced swing barrier gate designed for smooth and secure access. Supports RFID, QR Code, and Facial Recognition (optional).

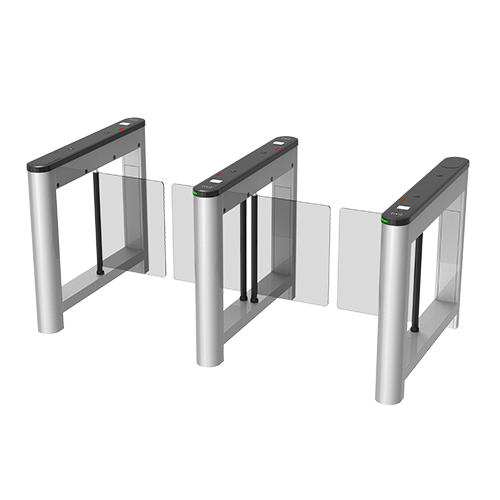

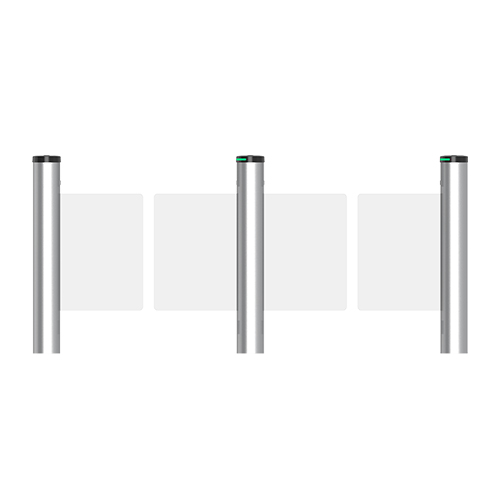

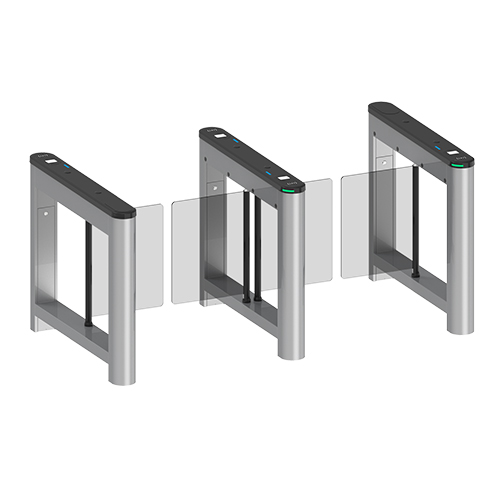

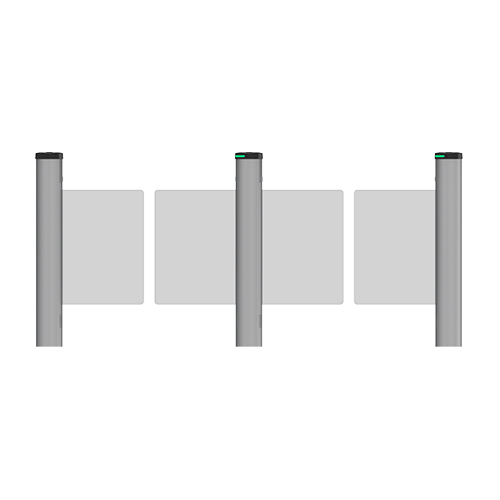

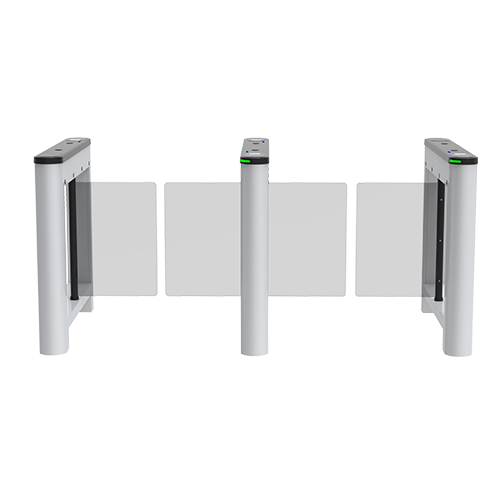

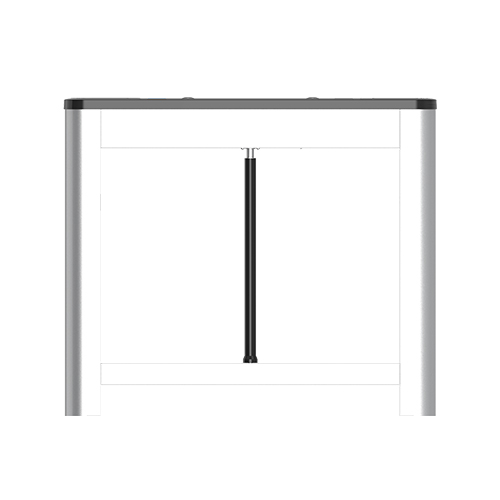

The ZKTeco Saturn Series redefines modern entry control with a stylish and highly functional swing barrier design. Available in two main models – Saturn-S1000 (Single Lane) and Saturn-S1200 (Dual Lane Extension) – this series offers a stunning finish in five contemporary colour options.
Compatible with ZKTeco’s enterprise-level platforms: ZKBio CVAccess and ZKBio CVSecurity, depending on the connected controller.
The Saturn Series is pre-assembled for ease of deployment. Supports mounting on flat finished floors, with optional base plates available for uneven surfaces.
| Specification | Saturn-S1000 | Saturn-S1200 |
|---|---|---|
| Function | Smart Entrance Control with RFID, QR, and Facial Authentication | |

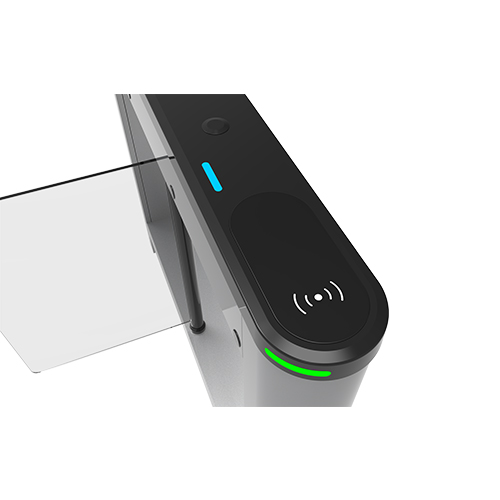

| Authentication Methods | RFID (Under Mount), QR Code (Under Mount), Facial (Surface Mount) | |
| Visual Indicators | Top: Blue (Standby), Green (Open), Red (Closing/Alarm) Side: Green (Available), Red (Unavailable) | |
| Lane Type | Single Lane | Dual Swing (for additional lane) |
| Lane Width | 650mm (Standard), 900mm (Optional) | |
| Barrier Material | Clear Acrylic (635×300mm standard) or Tempered Glass (635×425mm optional) | |
| Barrier Movement | Swing | |
| Motor | DC Brushless Motor | |
| MCBF (Movement Life) | 3 Million | |
| Movement Speed | ~1s per movement (Adjustable) | |
| Material (Chassis) | Cold-rolled SPCC Steel (GB700), Polycarbonate (Side Lid) | |
| Top Lid Material | Polycarbonate + 2.5D Tempered Glass | |

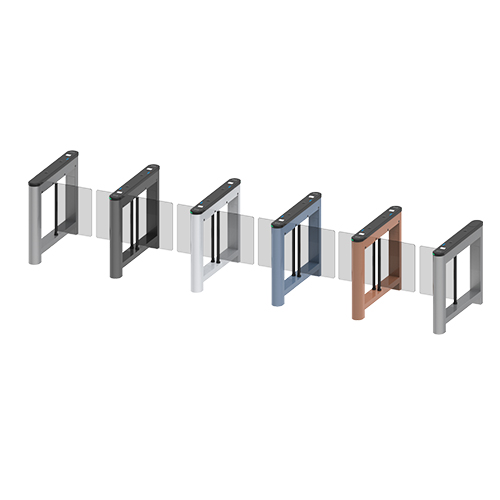

| Finish & Colour Options | Pearl White (PWH), Space Gray (SGY), Carbon Black (CBK), Bay Blue (BBLE), Mist Brown (MBW) | |
| IR Sensors | 4 Pairs (Anti-pinch & Security) | |
| Security Features | Anti-tailgating, Anti-pinch, Auto-open on fire signal/power loss, 800mm+ swing arm height | |
| Controller Compatibility | C3 Series / InBio Series / Custom options | |
| Reader Compatibility | ProID Series, KR Series (RFID), FR1200 / FR1500S (Fingerprint) | |
| Flow Rate | Face: 15/min | QR: 30/min | RFID: 35/min | |
| Power Supply | 110V / 220V ±10% AC @ 50Hz/60Hz | |
| Power Consumption | Standby: 10VA, Operation: 40VA | |
| Audio Indicator | Internal Speaker | |
| Noise Level | ≤60dB | |
| MTTR | Less than 60 minutes | |
| Dimensions (L×W×H) | 1200 × 150 × 1020 mm | |
| Weight | 50kg | 30kg |
| Ingress Protection | IPX4 (Water/Dust Resistant) | |
| Working Temperature | -30°C to +70°C | |
| Working Humidity | 5% to 90% RH (Non-condensing) | |
| Certifications | CE, FCC | |
| Installation | Pre-assembled; indoor or outdoor (if sheltered); optional base plate for unfinished floors | |
| Supported Software | ZKBio CVAccess, ZKBio CVSecurity (depends on controller) | |
| Application Areas | Corporate Offices, Hotels, Transport Terminals, Conference Centres | |
| Packing Options | Carton (2 boxes) or Wooden Box (1 unit) | Carton (1 box) or Wooden Box (1 unit) |
