An upgraded, modular swing barrier gate system designed for high-end security environments. The Saturn Plus Series features RFID, QR code, and optional facial authentication, advanced safety via dual-pinch IR sensors, and stylish finishes.

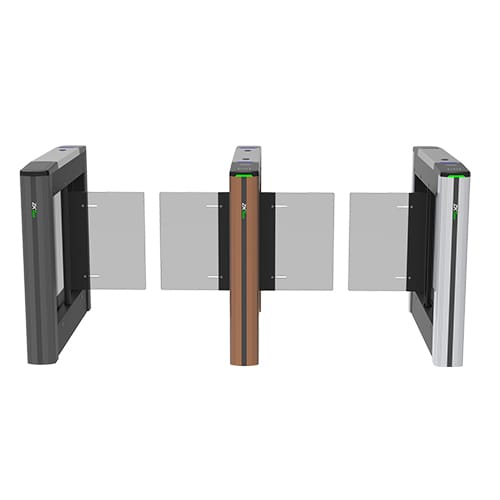

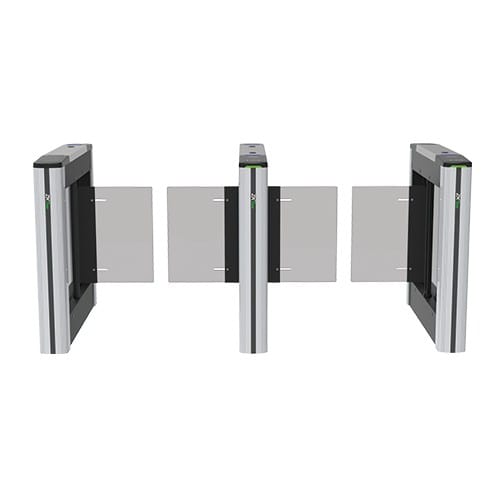

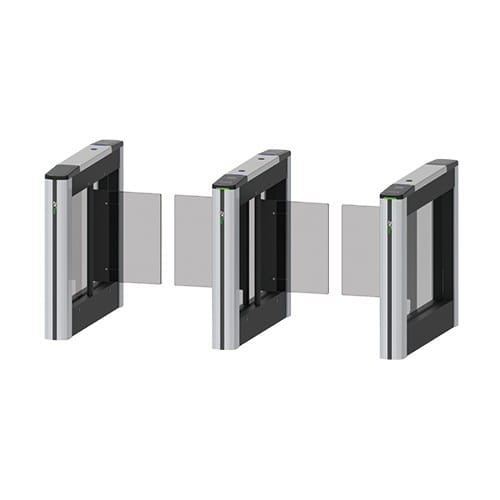

The Saturn Plus Series redefines modern swing barrier turnstiles with durability, design, and safety in mind. Offered in two variants – Saturn-S1000 Plus and Saturn-S1200 Plus – this premium range is ideal for corporate buildings, transport hubs, hotels, and secure venues.
Fully compatible with ZKTeco software platforms (depending on controller):
| Specification | Saturn-S1000 Plus | Saturn-S1200 Plus |
|---|---|---|
| Function | Smart swing barrier for RFID, QR, and Facial Authentication | |
| Authentication Methods | RFID (Under Mount), QR Code (Under Mount), Facial (Surface Mount) | |
| Visual Indicators | Top: Blue (Closed), Green (Open), Red (Alarm); Side: Green (Available), Red (Unavailable) | |
| Lane Type | Single Lane | Dual Swing (Additional Lane) |
| Lane Width | 600mm (Standard), 900mm (Optional) | |
| Barrier Material | Light Grey Transparent Acrylic – 555×300mm (Standard), 555×375mm (Optional) | |
| Barrier Movement | Swing | |
| Motor Type | DC Brushless Motor | |
| Movement Speed | ~1s per movement (adjustable) | |
| MCBF (Movement Life) | 3 Million | |
| Safety Sensors | 6 Pairs IR Sensors (Dual Anti-Crushing) | |
| Emergency Mode | Auto-open on power failure or fire alarm | |
| Ingress Protection | IPX4 | |
| Working Temperature | -30°C to 70°C | |
| Working Humidity | 5% – 90% RH (Non-condensing) | |
| Noise Level | Less than 60dB | |
| Certifications | CE, FCC | |
| Power Supply | 110V / 220V ±10% AC @ 50Hz/60Hz | |
| Power Consumption | Standby: 10VA | Operation: 40VA | |
| Material (Chassis) | Cold-rolled Steel SPCC (GB700), Electrostatic Painted | |
| Top Lid Material | Polycarbonate + 2.5D Tempered Glass | |
| Clutch / Safety Design | Upper edge ≥800mm / Bottom edge ≤200mm – prevents intrusion or water submersion breaches | |
| Dimensions (L×W×H) | 1200 × 150 × 1020 mm | |
| Weight | 50kg | 30kg |
| Packing (Carton) | 1265×220×1070 mm (2 boxes) | 1265×220×1070 mm (1 box) |
| Packing (Wooden) | 1300×480×1224 mm (1 box) | 1300×260×1224 mm (1 box) |
| Mounting | Pre-assembled, with base plate optional for unfinished floor | |
| Colour Options | Silver (Standard), Gray (Optional), Brown (Optional) | |
| Audio Indicator | Internal Speaker | |
| Software Support | ZKBio CVAccess / ZKBio CVSecurity (depending on controller) | |
| Compatible Controllers | InBio / C3 Series / Custom | |
| Supported Readers | ProID Series, KR Series, FR1200/FR1500S | |
| Flow Rate | Face: 15/min | QR: 30/min | RFID: 35/min | |
| Applications | Corporate Offices, Hotels, Terminals, Conference Centres | |
| MTTR | Less than 60 minutes | |
| Security Level | Low | |
