ZKTeco InBio 260: IP-based Biometric 2 Door Access Control Panel

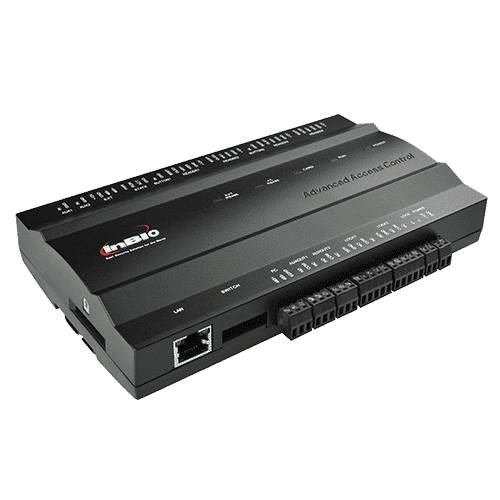

ZKTeco InBio 260

A 2-door, IP-based Biometric Door Access Control Panel from the InBioseries. It performs fingerprint matching with support from the FR Series of readers. Equipped with TCP/IP and RS-485 communication, it can store up to 3,000 fingerprint templates and 30,000 badge users. With advanced features like Anti-Passback, Multi-Card Opening, and Duress Password Entry, it ensures enhanced security. The device offers easy integration through its SDK for developers and can be customized to suit specific requirements. Specifications include a 32 bit 400MHz CPU, 32M RAM, and 128M Flash Memory, ensuring reliable performance.

Product Details

ZKTeco InBio 260 is a part of the InBioseries of IP-based Biometric Door Access Control Panels. The unit provides a truly internal biometric identification mechanism by carrying out the matching of fingerprints on the panels. This process is supported by the FR Series of readers which transmit fingerprint templates to InBio through RS485, enabling fast and accurate matching with templates stored in its database. Additionally, the InBio 260 is designed to support traditional RFID readers through its Wiegand inputs.

The device can be easily installed on a network and supports both TCP/IP and RS-485 communication. To assist with configuration, an auto-discovery tool is provided which permits the direct and easy setting and modification of network parameters.

In terms of capacity, the InBio 260 can handle up to 3000 fingerprint templates, 30,000 badge users, and it can store up to 100,000 events and transactions. An important feature to note is the preservation of data in case of power loss, with the controller remaining operational even when the network connection is interrupted. The InBio 260 is a part of ZKTeco's commitment to ensuring the lowest total cost of ownership for customers. This is evident through features like easy firmware upgrades without the need for advanced tools.

The controller's functionalities extend beyond just door control. Upon programming, its auxiliary relays can be customized to function as lights, alarms, or intrusion detection panels. Additionally, it provides options to control extra locking devices or gate controllers. This 2-door model incorporates advanced access control functions such as Anti-Passback, First-Card Opening, Multi-Card Opening, Duress Password Entry, and both Auxiliary input and output linkages built into its firmware.

For software developers looking to integrate the InBio 260 into existing setups, an SDK is available. This allows for integration with current security or personnel management applications. ZK also offers customization of the InBio firmware upon customer requests.

Specifically for the InBio 260:

  • It is designed to control 2 doors.
  • Supports 8 readers in total (4 RS-485 Readers and 4 26-bit wiegand readers).
  • Has 6 inputs (2 for exit devices, 2 for door status, and 2 AUX).
  • Boasts 4 outputs (2-Form C Relay for locks and 2-Form C Relay for auxiliary outputs).
  • Operates with a 32 bit 400MHz CPU, 32M of RAM, and 128M of Flash Memory.
  • Functions within an operating temperature of 0-45 °C and a humidity range of 20% to 80%.

Additional information

Package

Controller Only, Package B (Includes Enclosure and Power Supply)

Specifications

FeatureSpecification
Number of Doors ControlledInBio-160: 1 Door
InBio-260: 2 Door
InBio-460: 4 Door
Number of Readers SupportedInBio-160: 4 (2*RS-485 Readers, 2* 26/34-bit Wiegand Readers)
InBio-260: 8 (8 (4*RS-485 Readers, 4*26/34-bit Wiegand Readers)
InBio-460: 12 (8*RS-485 Readers, 4*26/34-bit Wiegand Readers)
Types of Readers Supported26 / 34-bit Wiegand and RS485 FR Series Reader
Number of InputsInBio-160: 3 (Exit Button and Door Status, 1 AUX)
InBio-260: 6 (2 Exit Device, 2 Door Status, 2 AUX)
InBio-460: 12 (4 Exit Device, 4 Door Status, 4 AUX)
Number of OutputsInBio-160: 2 (1-Form C Relay for Lock and One Form C Relay for Aux Output)
InBio-260: 4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output)
InBio-460: 8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output)
Card Holders Capacity30,000
Fingerprint Capacity (optional)3,000
Log Events Capacity100,000
CommunicationTCP / IP
Dimension(L*W*H)InBio-160: 185x106x36 mm
InBio-260: 185x106x36 mm
InBio-460: 226x106x36 mm
Net WeightInBio-160: 0.82 Kg
InBio-260: 0.93 Kg
InBio-460: 1.11 Kg
Power9.6V-14.4V DC
Operating Temperature0 - 45 °C
Operating Humidity20% to 80% RH
Installation MethodWall mount (metal enclosure box)
CertificationsISO9001, ISO14001, CE, FCC
Supported SoftwareZKBio Access IVS
