Description
Overview
The ZKTeco Horus E2 is an advanced Android-based biometric terminal designed to streamline both access control and time attendance management. Equipped with multiple authentication methods, including facial recognition, fingerprint scanning, RFID, and QR code reading, it caters to diverse security requirements across various environments.
Key Features
- Multi-Modal Authentication: Supports facial recognition, fingerprint scanning (optional), RFID cards, QR codes, and PIN entry.
- High Capacity: Accommodates up to 50,000 users, 20,000 face templates, 30,000 fingerprint templates (Horus E2-FP), and 200,000 transaction records.
- Fast Recognition: Facial authentication in less than 1 second; fingerprint verification in less than 0.5 seconds (Horus E2-FP).
- Robust Connectivity: Offers 4G LTE, dual-band Wi-Fi (2.4GHz & 5GHz), Bluetooth 4.1, and TCP/IP for seamless network integration.
- Android 10 OS: Provides a stable platform for third-party application integration and user-friendly interface.
- High-Resolution Display: Features a 5-inch TFT color touch LED screen (720×1280) for clear visual feedback.
- Optional Backup Battery: Horus E2-B model includes a 3,200mAh removable lithium battery for over 4 hours of continuous operation, ideal for mobile and remote applications.
- Enhanced Security: Implements AES-256 encryption for secure data transmission and storage.
Model Variants

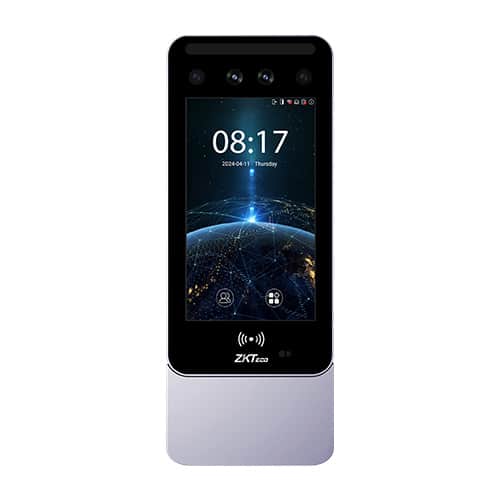

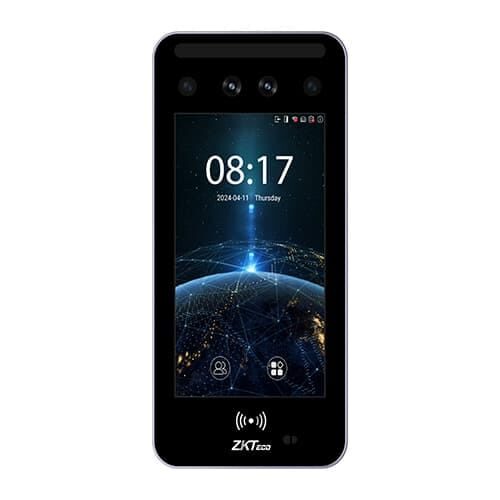

- Horus E2: Face + Card authentication.

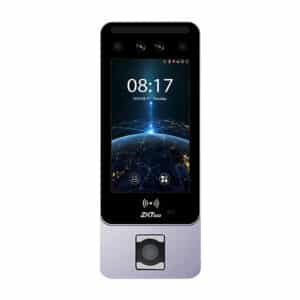

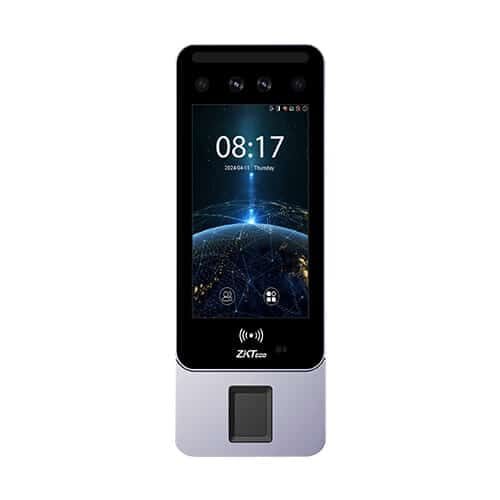

- Horus E2-FP: Face + Fingerprint + Card authentication.

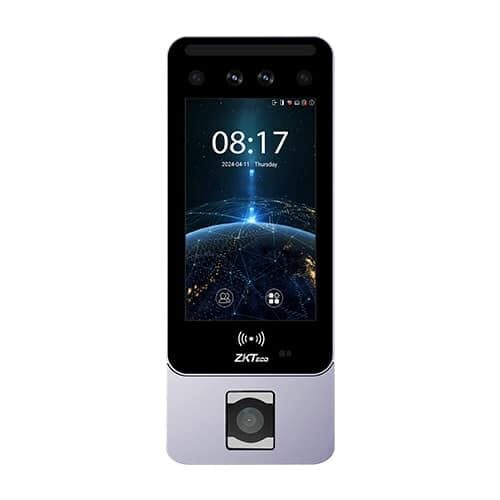

- Horus E2-QR: Face + QR Code + Card authentication.
- Horus E2-B: Face + Card authentication with built-in backup battery.
Technical Specifications
- CPU: Octa-core @ 2.0 GHz.
- Memory: 2GB RAM / 16GB ROM.
- Camera: Dual 2MP cameras with supplement light.
- Operating Temperature: -10°C to 45°C.
- Operating Humidity: 0% to 80% RH (non-condensing).
- Dimensions: Horus E2: 171.5mm × 82mm × 19.5mm; Horus E2-FP/B/QR: 216mm × 82mm × 19.5mm.
- Power Supply: DC 12V 3A.
Integration & Compatibility
- Software: Compatible with ZKBio Time, ZKBio CVAccess, and ZKBio Zexus Mobile App.
- Access Control Interfaces: Supports RS485, Wiegand input/output, auxiliary inputs, electric lock, door sensor, exit button, and alarm connections.
- Third-Party Integration: Android 10 OS allows for seamless integration with third-party applications.
Applications
- Corporate offices and commercial buildings.
- Construction sites and remote work locations.
- Educational institutions and government facilities.
- Healthcare centers and laboratories.
- Transportation hubs and logistics centers.
For more information, visit the official ZKTeco Horus E2 page: https://www.zkteco.com/en/Android_DevicetCQ/Horus_E2
