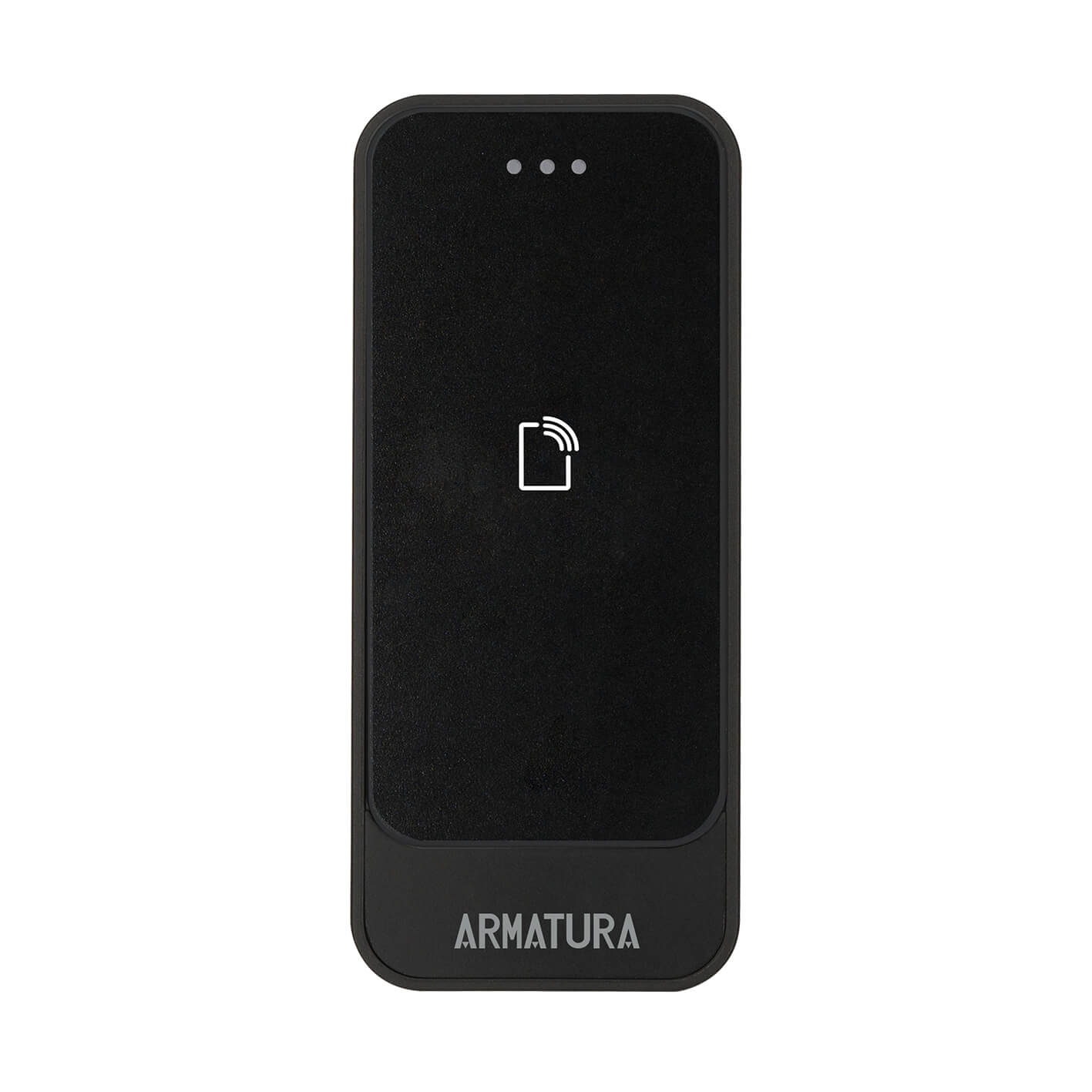

Armatura EP10C Explorer Series – All-Weather Outdoor Slave Reader
The Armatura EP10C is a compact, ruggedised RFID slave reader designed for outdoor and high-security access control installations. It connects to third-party controllers via OSDP v2.2 (RS-485) or Wiegand, delivering reliable credential reading in harsh environments.
The Armatura EP10C Explorer Series is an all-weather outdoor slave reader engineered for commercial, government, and industrial access control applications. This compact mullion-mount reader connects to external access control panels—such as the Armatura AHSC or AHDU series—via industry-standard Wiegand or OSDP v2.2 over RS-485.
Designed to withstand New Zealand’s variable climate, the EP10C features IP68 ingress protection and IK10 impact resistance, making it suitable for exposed outdoor locations, coastal environments, and high-traffic entry points.
Dual-Frequency RFID Support
The EP10C reads credentials across 125 kHz and 13.56 MHz frequencies, supporting ISO14443 Type A/B and ISO15693 standards. This enables compatibility with a wide range of proximity and smart card technologies commonly deployed in commercial access control systems.
OSDP v2.2 Secure Communication
Open Supervised Device Protocol (OSDP) v2.2 provides encrypted bidirectional communication between the reader and controller over RS-485. This eliminates vulnerabilities associated with legacy Wiegand wiring while enabling tamper reporting, LED/buzzer control, and secure firmware updates. Communication is protected with AES-128 encryption.
Secure Element with EAL6+ Certified Crypto Chip
Credential data is stored on an EAL6+ certified encryption chip within the reader’s secure element, providing the highest commercial-grade protection against data extraction and tampering.
All-Weather Durability
Wide Operating Temperature
The EP10C operates reliably from -30°C to +70°C, suitable for cold stores, coastal installations, and exposed outdoor locations throughout New Zealand.
Tamper Detection
A magnetic tamper switch alerts the access control system if the reader is removed from its mounting surface.
Controller Integration
The EP10C is a slave reader requiring connection to an external access control panel. It supports:
Compatible with Armatura AHSC and AHDU series controllers, as well as third-party OSDP or Wiegand-compatible panels.
Configuration App
Reader settings including LED colour, buzzer intensity, and operational parameters can be configured via the Armatura Connect mobile app.
Commercial Buildings & Corporate Offices
Deploy on exterior doors, loading docks, and car park entrances where weather resistance and vandal protection are essential.
Government & High-Security Facilities
EAL6+ secure element certification and IEC EN 60839 Grade 4 compliance suit environments requiring robust credential security and tamper detection.
Industrial & Harsh Environments
IP68 and IK10 ratings combined with the extreme temperature range make the EP10C ideal for warehouses, manufacturing plants, cold storage, and marine environments.
Multi-Site Deployments
Wiegand backward compatibility allows integration with existing legacy systems, while OSDP readiness supports future upgrades.

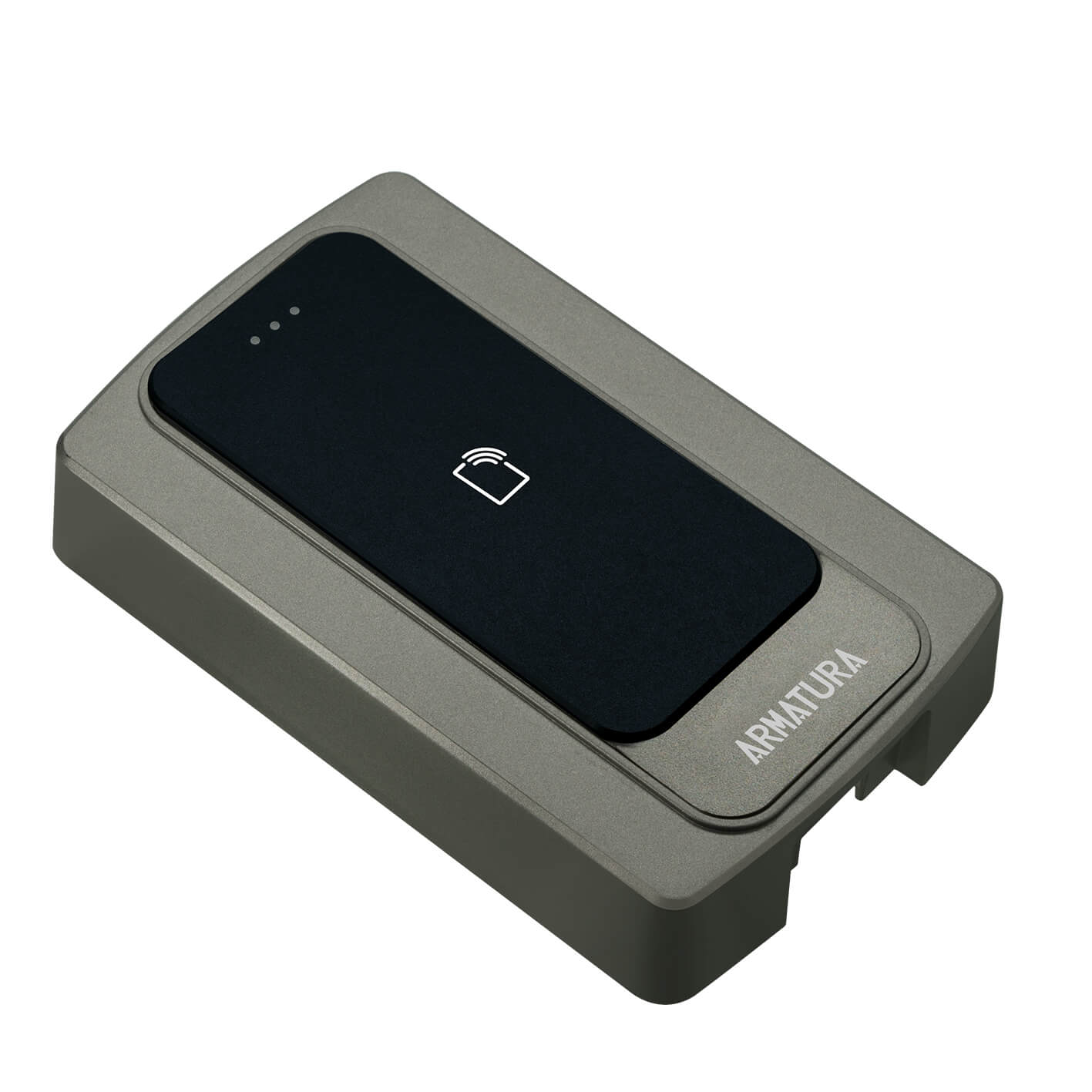

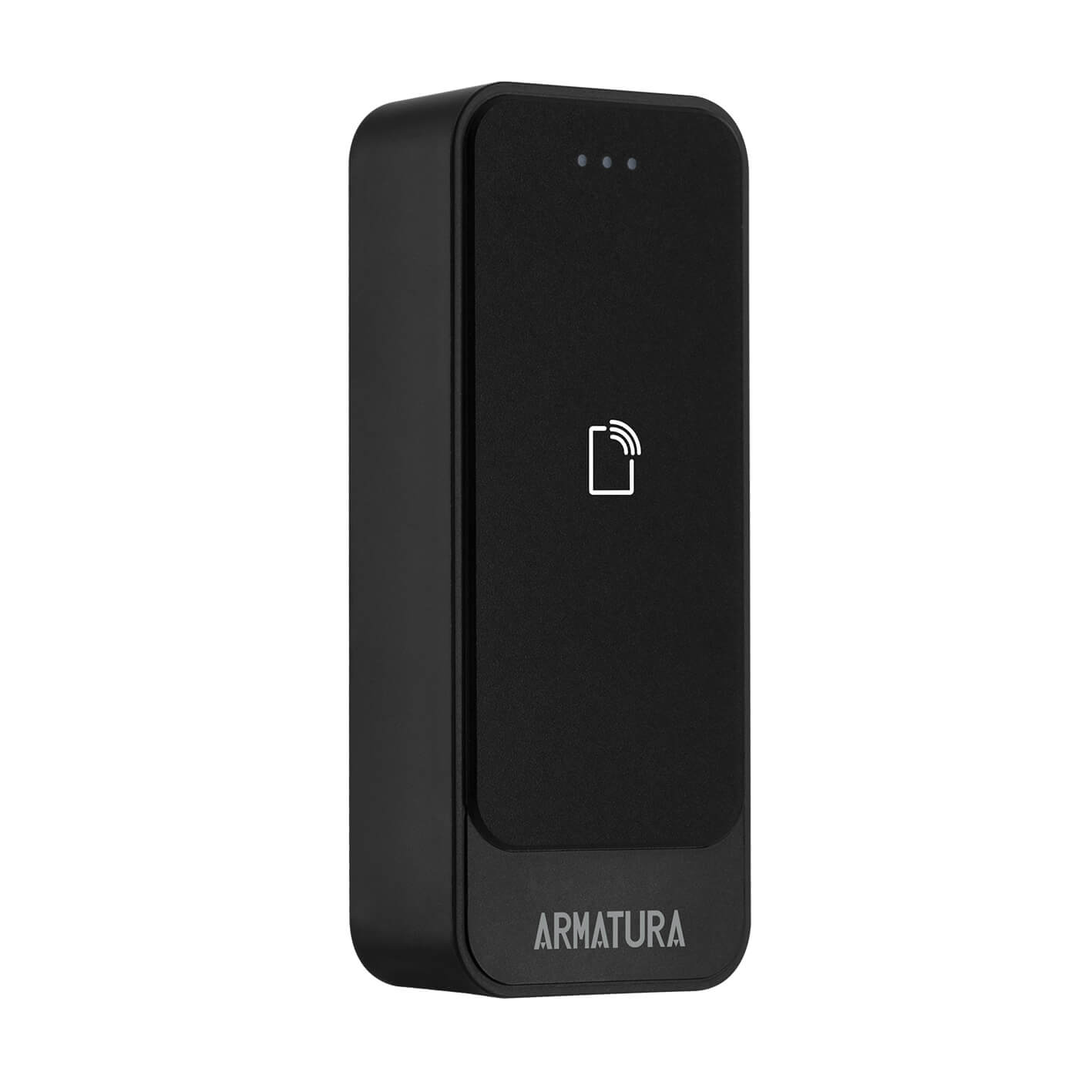

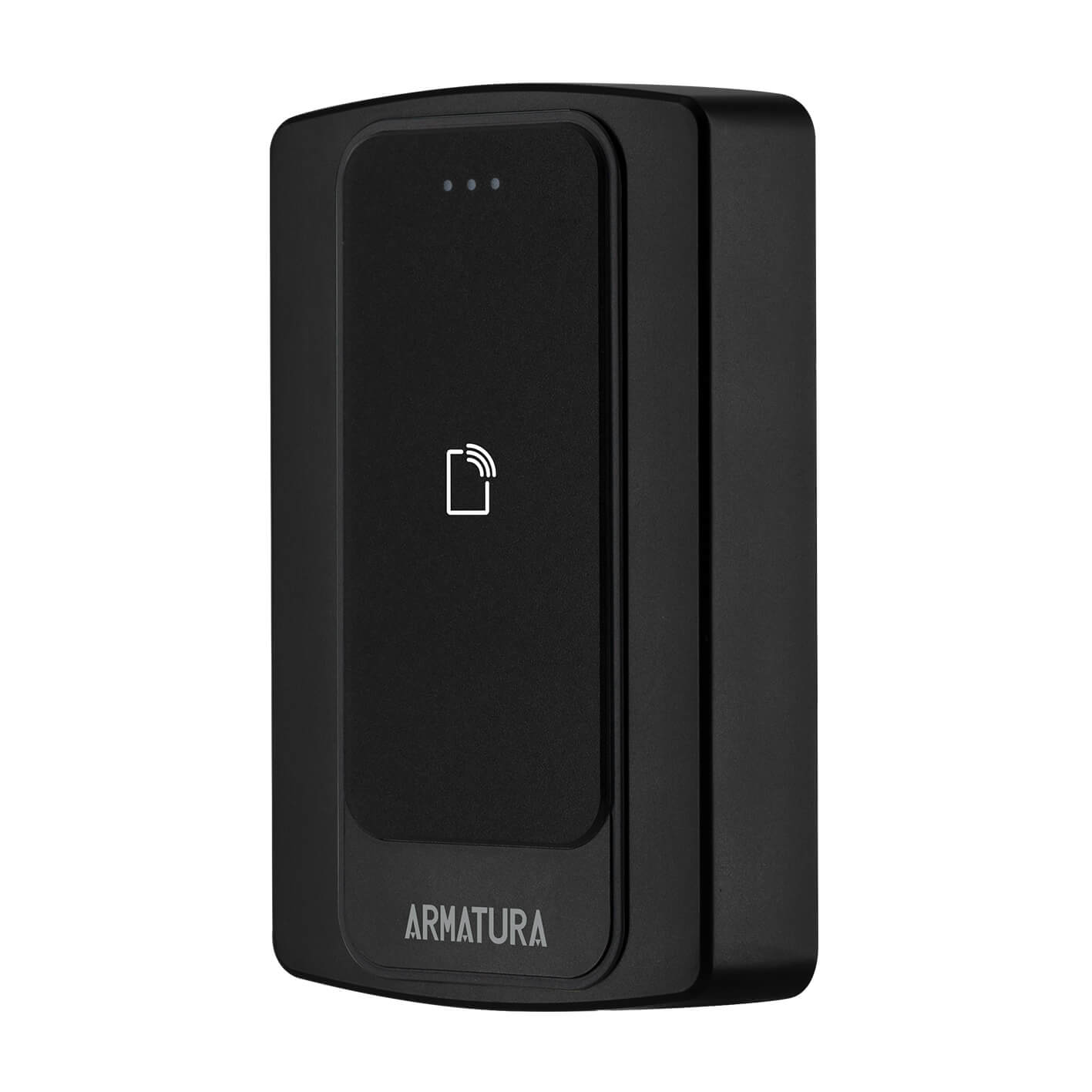

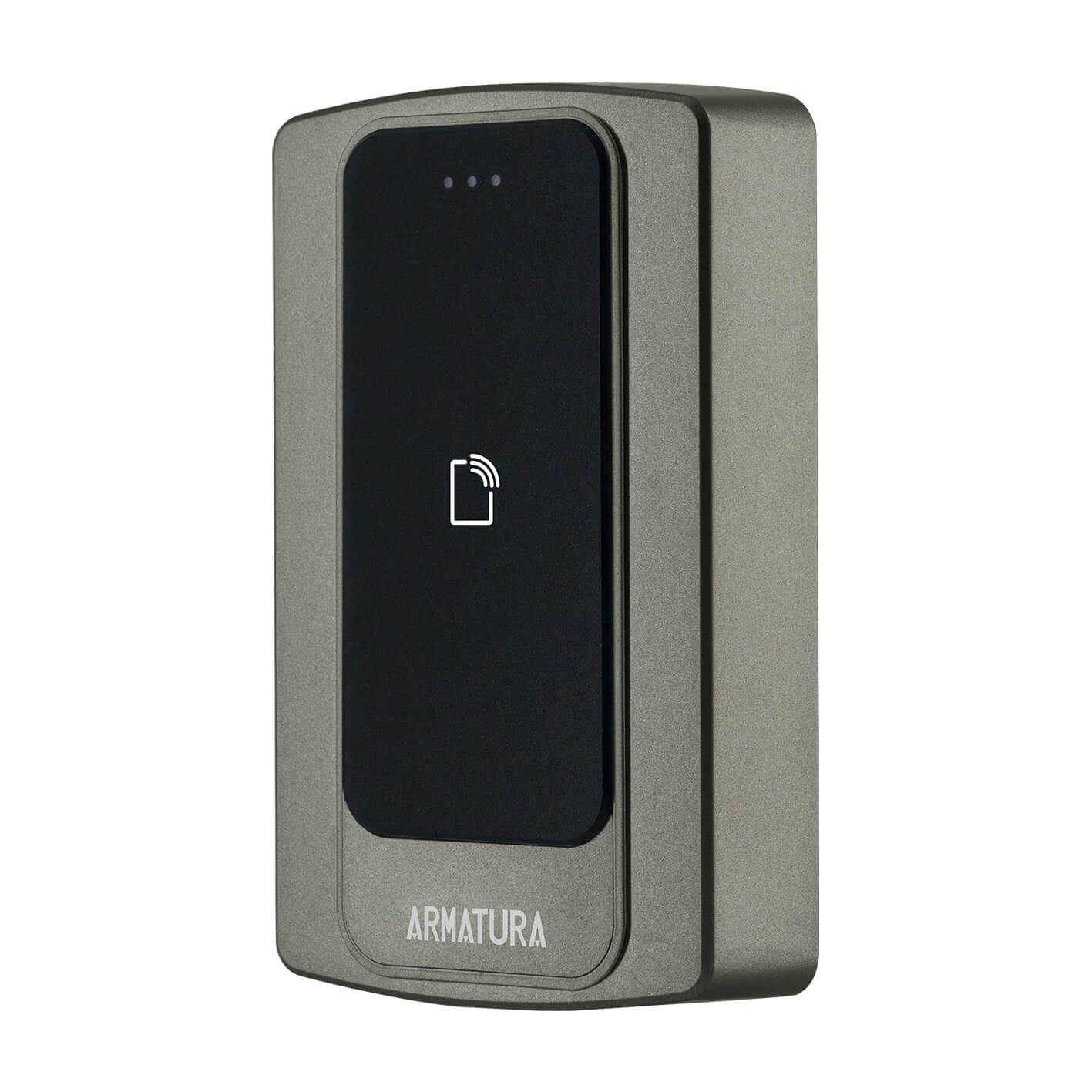

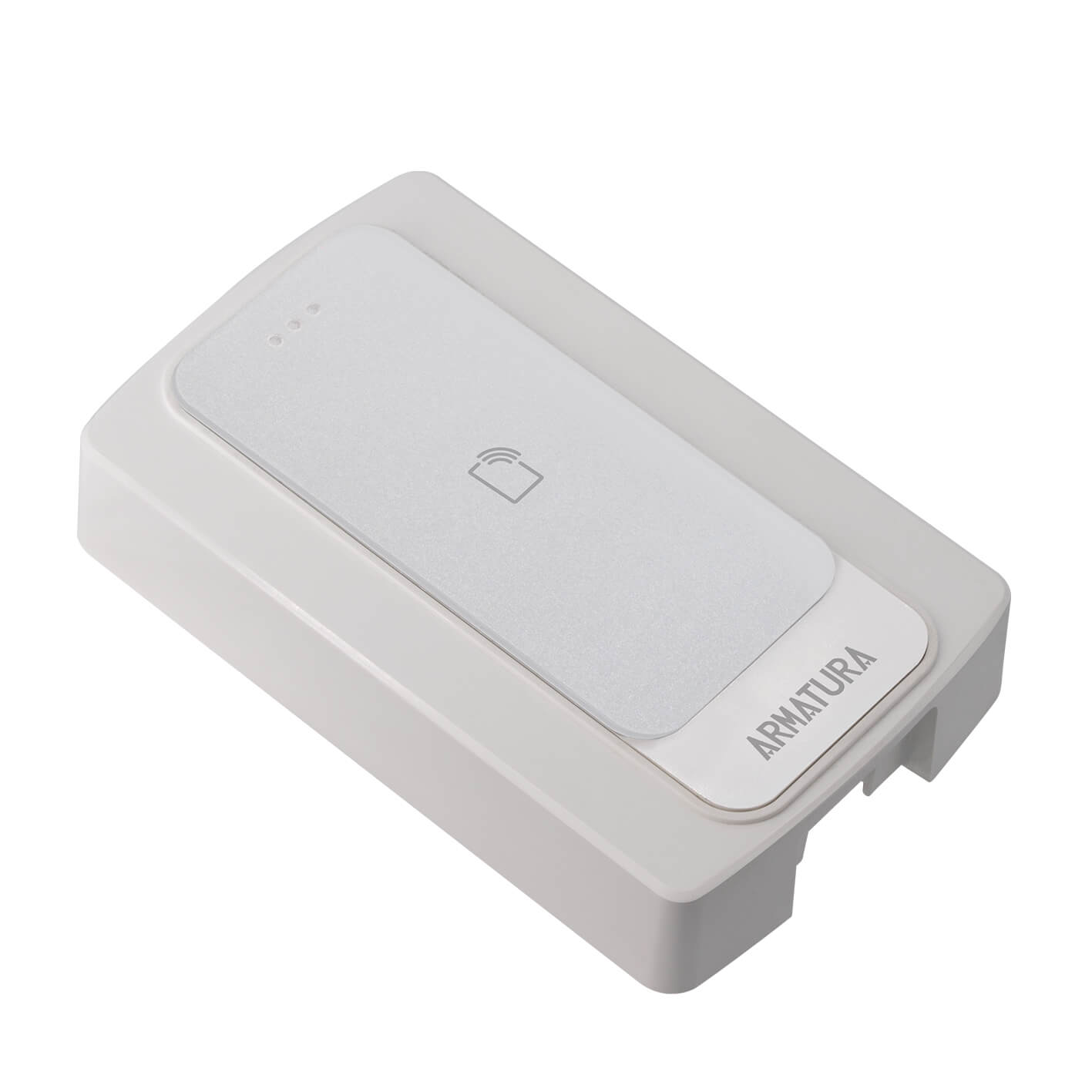

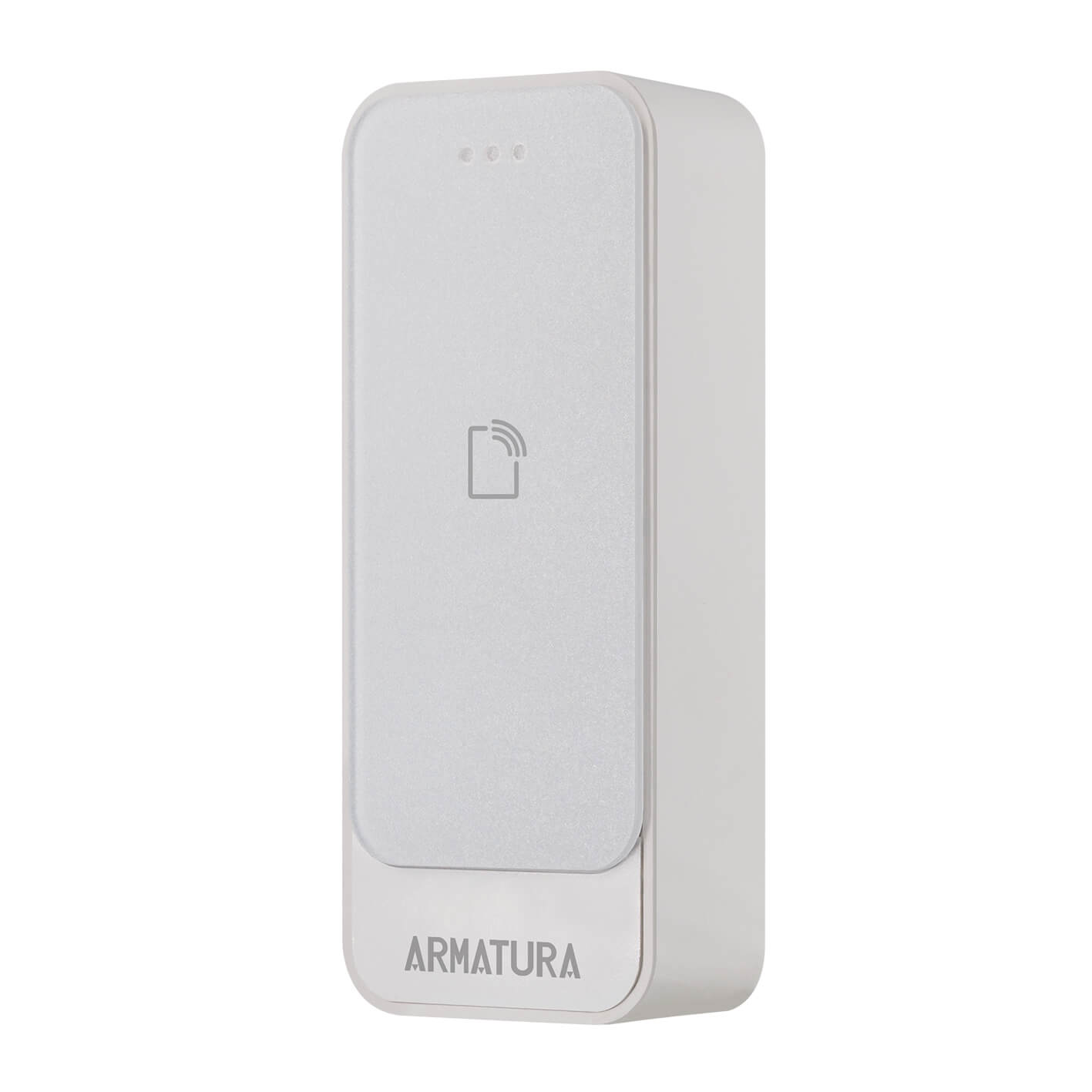

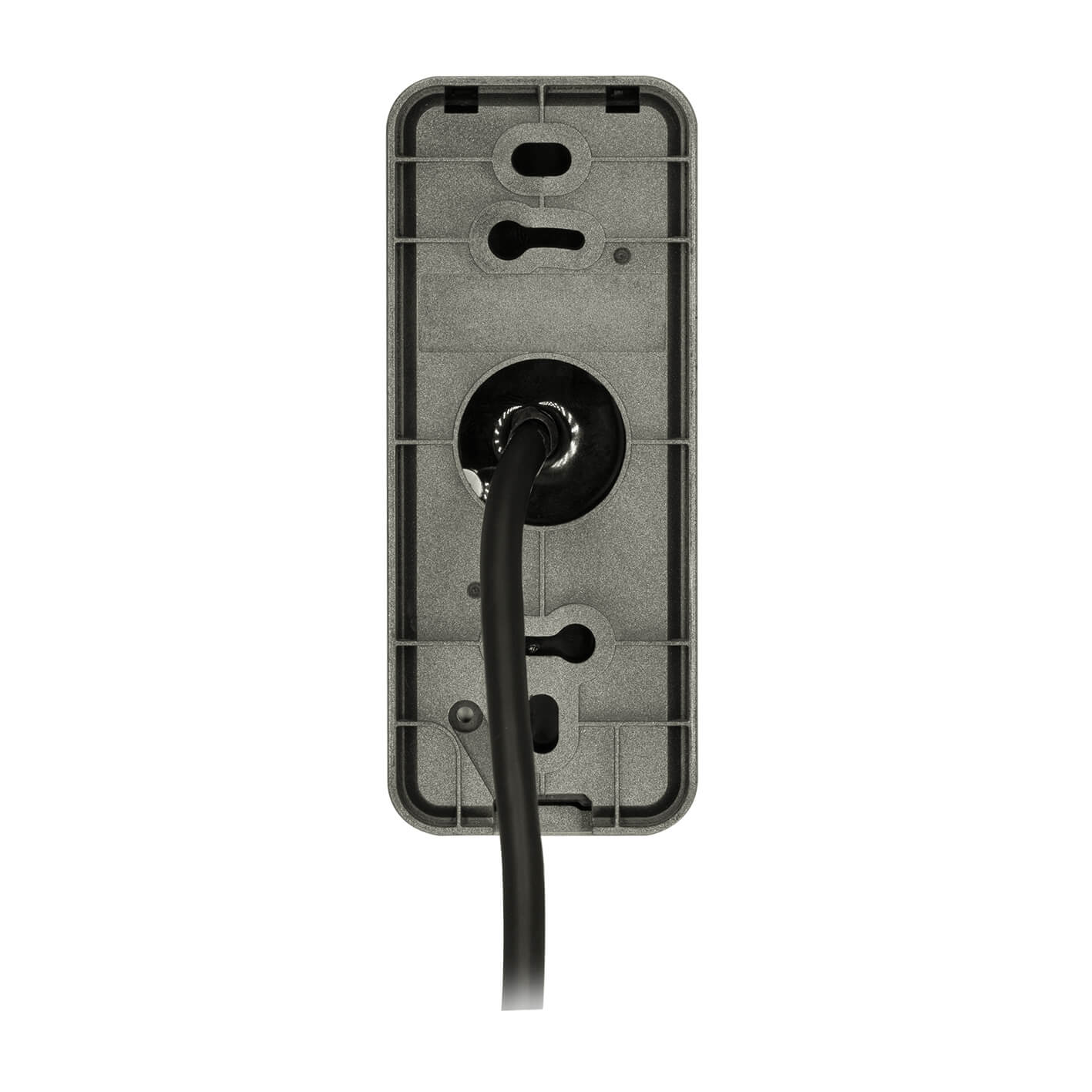

The EP10C is designed for mullion-mount installations on narrow door frames or flat surfaces. Two housing options are available:
Optional back-box spacers accommodate Asian, European, and single-gang electrical box standards.
Wiring Requirements
| Specification | EP10C |
|---|---|
| Model | EP10C |
| Device Type | Slave Reader (requires external controller) |
| Operating Frequencies | 125 kHz, 13.56 MHz (ISO14443 A/B, ISO15693) |
| Communication Protocols | Wiegand, OSDP v2.2 via RS-485 (up to 128-bit SCP) |
| RFID Reading Distance | Up to 60 mm (environment and transponder dependent) |
| Data Protection | AES-128 (reader–controller), EAL6+ certified secure element |
| Ingress Protection | IP68 (submersible to 1.5m for 30 minutes) |
| Impact Protection | IK10 (withstands 20-joule impacts) |
| Operating Temperature | -30°C to +70°C |
| Power Supply | 9–24 VDC |
| Dimensions (Standard Cover) | 48 × 114.8 × 24.7 mm (W × H × D) |
| Dimensions (Gang Box Cover) | 76.2 × 123 × 24.7 mm (W × H × D) |
| Housing Material | Polycarbonate UL94-V0 & UL746C (F1) |
| UV Stability | No structural degradation for 3+ years |
| Visual Indicator | RGB LEDs (configurable via Armatura Connect) |
| Audio Indicator | Internal buzzer with adjustable intensity |
| Tamper Detection | Magnetic tamper switch |
| Mounting Options | Mullion mount, Asian/European/Single-gang box compatible |
| Certifications | CE, FCC, RoHS 3.0, WEEE, UL294, IEC EN/BS EN 60839 Grade 4 |
