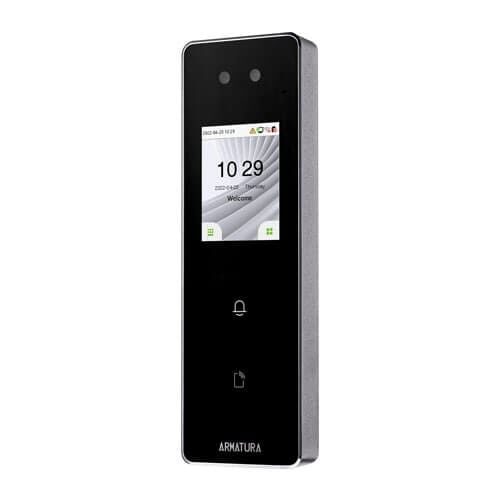

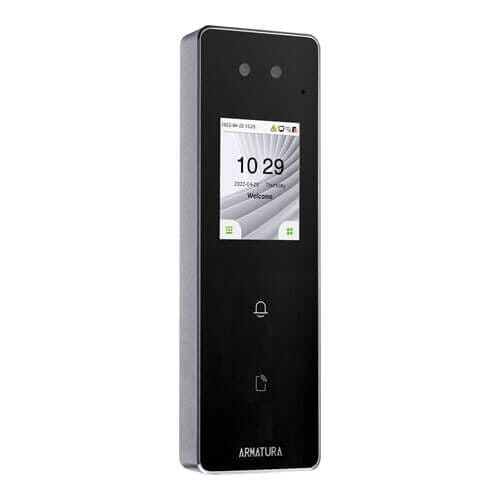

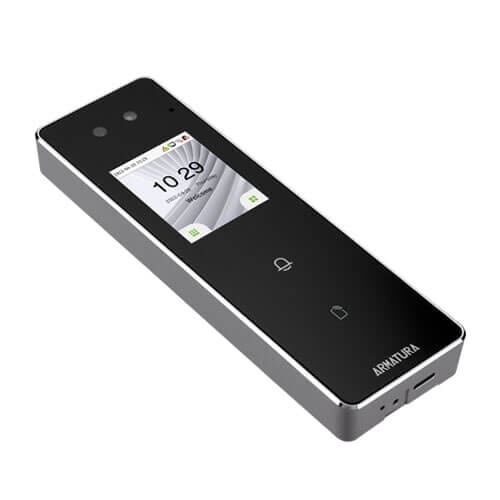

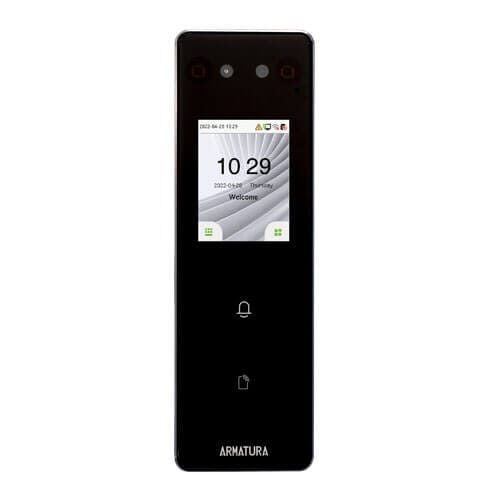

The OmniAC20 from Armatura is a next-generation outdoor biometric terminal featuring multi-modal authentication including face, palm, RFID card, QR code, and mobile credentials. Designed with a slim metal body, tempered glass finish, and IP66 weatherproof rating, it’s ideal for high-security applications in all environments.
With powerful AI-driven authentication and modular support for cards, QR, and mobile apps, the OmniAC20 stands out as one of the most flexible and secure outdoor biometric terminals available today.
| Feature | Specification |
|---|---|
| Authentication Methods | Face, Palm, QR Code, RFID, PIN |
| Face Capacity | 10,000 (1:N) / 50,000 (1:1); Optional: 100,000 |
| Palm Capacity | 5,000 (1:N) / 20,000 (1:1) |
| Card Capacity | 50,000 RFID cards |
| Display | 2.4″ TFT LCD Touchscreen, 240×320 resolution |
| Camera | 2 MP Visible + 1.3 MP IR Dual Camera |
| Verification Speed | <100ms (Face), <140ms (Palm) |
| Face Authentication Distance | 400mm – 1400mm |
| Palm Authentication Distance | 180mm – 400mm |
| Connectivity | TCP/IP, RS-485, Wiegand In/Out, OSDP 2.0/2.2 |
| Network Security | TLS 1.2, AES-128, Secure OSDP Channel |
| Operating Temperature | -10°C to 45°C |
| Protection Rating | IP66 Water & Dustproof |
| Power Input | 12V-24V DC, Max Power 10W |
| Video Intercom | SIP V2.0, 2-way Audio, App Support |
| Dimensions | 58.47 × 19.5 × 184.97 mm |
| Mounting | Wall or Mullion-Mount; Speed Gate Accessory Available |
| Certifications | CE, FCC, MIC, RoHS, ISO/IEC 19795-2 |
OmniAC20 all weather outdoor multi tech smart standalone terminal A&E specifications Version 1.2 20240829
ARMATURA OmniAC20 UM EN v2.2 20250124
MNIAC20 Datasheet 20250315
Armatura CONNECT User Manual EN v1.3 20221031
ARMATURA OmniAC20 IG EN v1.6 20250103
ARMATURA OmniAC20 QSG EN v2.3_20250103
Armatura Access Hardware Functions Selection Guide 20240711
