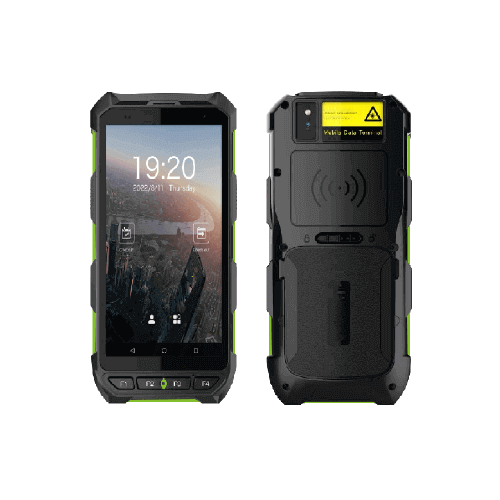

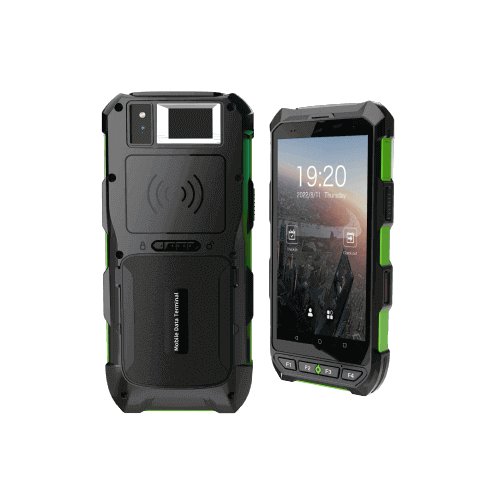

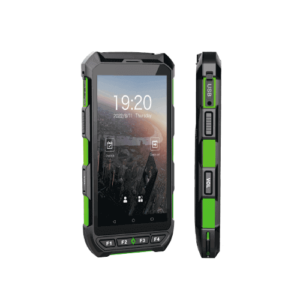

The ZKTeco Horus H1 is a handheld time and attendance terminal for teams working across construction sites, factories and other locations where a fixed clocking point is impractical. A supervisor can take the device to the workforce, capture attendance and include location information in the attendance system.
The 5.5-inch touchscreen gives staff a clear interface for clocking in and out. Facial recognition works at a specified distance of 0.3–2 m, with a manufacturer recognition time of less than one second. The terminal stores up to 50,000 users, 50,000 face templates and one million attendance records.
Fingerprint verification is optional. The two existing product options are Horus H1 without Fingerprint and Horus H1 with Fingerprint. Choose the fingerprint-equipped option if your attendance process needs it. The optional configuration supports up to 30,000 fingerprint templates. NFC card reading is also supported, with card and application compatibility checked as part of setup.
Built-in GPS with assisted GPS and GLONASS supports location-based attendance records. This associates a clocking event with a work location for attendance management. Location performance depends on the operating environment and the way the software is configured.
Dual-band Wi-Fi and 4G provide connectivity options for different sites, while Bluetooth and USB Type-C support the device’s wider communications functions. For mobile data, confirm the SIM, operator, supported LTE bands and coverage at each work location before deployment.
The rechargeable 5200 mAh lithium-ion battery supports up to five operating hours. Plan charging around the attendance task; actual runtime varies with network activity, screen use and operating conditions.
The ABS housing and tempered-glass surface have an IP65 protection rating. The specified operating range is −20°C to +50°C. These features suit mobile use around industrial and outdoor sites, with appropriate care for the device and its connectors.
The Horus H1 supports ZKBio Time attendance software, as well as ZKBio Security and ZKBio CVSecurity. Confirm the software version, required modules and licences for the intended installation. Specify the required software, modules and integration work in the quotation.
QR support has specific dependencies: ZKTeco identifies dynamic QR codes from the ZKBioSecurity mobile application. General QR and barcode formats, including PDF417, Data Matrix, MicroPDF417 and Aztec, are described for third-party development projects. Agree the application and integration requirements before specifying QR-based attendance.
Before ordering, confirm the number of users, locations, attendance software, network coverage, charging arrangements and whether fingerprint verification is required. A PUSH SDK is available for integration projects. Agree any payroll connection, data mapping and development work before deployment.
Explore NZTeco’s time and attendance solutions, or request a Horus H1 quote with your site locations, staff numbers and existing software.
| Specification | Details |
|---|---|
| Model | Horus H1 |
| Operating system | Android 10.0 |
| Processor | 64-bit octa-core Cortex-A53, 2.0 GHz — V1.6 datasheet |
| Memory | 4 GB RAM / 64 GB ROM |
| Storage expansion | Micro SD card, up to 256 GB |
| Display | 5.5-inch IPS capacitive LCD touchscreen |
| Resolution | 720 × 1440 |
| Cameras | 13 MP dual-lens rear camera; 5 MP front camera |
| Biometric verification | Face; fingerprint optional |
| Face algorithm | ZKFace 5.6.2 |
| Face recognition distance | 0.3–2 m |
| Face recognition time | < 1 second (manufacturer specification) |
| User / face / card capacity | 50,000 users / 50,000 face templates / 50,000 cards |
| Fingerprint capacity | 30,000 templates — optional fingerprint configuration |
| Fingerprint sensor / comparison time | Semiconductor; ≤ 0.5 seconds — optional fingerprint configuration |
| Record capacity | 1,000,000 logs |
| NFC card standards | ISO14443A and ISO15693; NFC-IP1 and NFC-IP2 |
| NFC reading distance | 3–5 cm maximum |
| Wi-Fi | 2.4 / 5 GHz; IEEE 802.11 a/b/g/n/ac |
| Mobile communications | 4G LTE; confirm operator, SIM and local coverage |
| LTE bands | TDD: 38, 39, 40, 41. FDD: 1, 2, 3, 4, 5, 7, 8, 12, 17, 20 |
| Bluetooth | v2.1+EDR / v3.0+HS / v4.2 |
| Positioning | GPS with A-GPS; GLONASS; manufacturer-stated accuracy distance of 5 m |
| USB interface | 1 × USB 2.0 Type-C |
| QR and barcode support | Dynamic QR from ZKBioSecurity mobile application; QR, PDF417, Data Matrix, MicroPDF417 and Aztec for third-party development projects |
| Supported software | ZKBio Time, ZKBio Security, ZKBio CVSecurity; confirm version and licensing |
| Integration | PUSH SDK |
| Power input | 5 V DC, 2 A |
| Battery | Embedded 5200 mAh lithium-ion; up to five operating hours, depending on use |
| Protection | IP65 |
| Housing | ABS plastic with tempered-glass surface |
| Operating temperature / humidity | −20°C to +50°C / < 90% RH |
| Storage temperature / humidity | −20°C to +70°C / < 90% RH |
| Dimensions (H × W × D) | 170 × 80 × 20 mm |
| Published weight figures | 400 g gross weight; 700 g with packaging |
| Specification source | Horus H1 Leaflet V1.6, 29 November 2024 |
